Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Model Number : | AL17954 |
| Certification : | ce, RoHS, ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 100000pcs per Month |
| Delivery Time : | 5-10 work days |

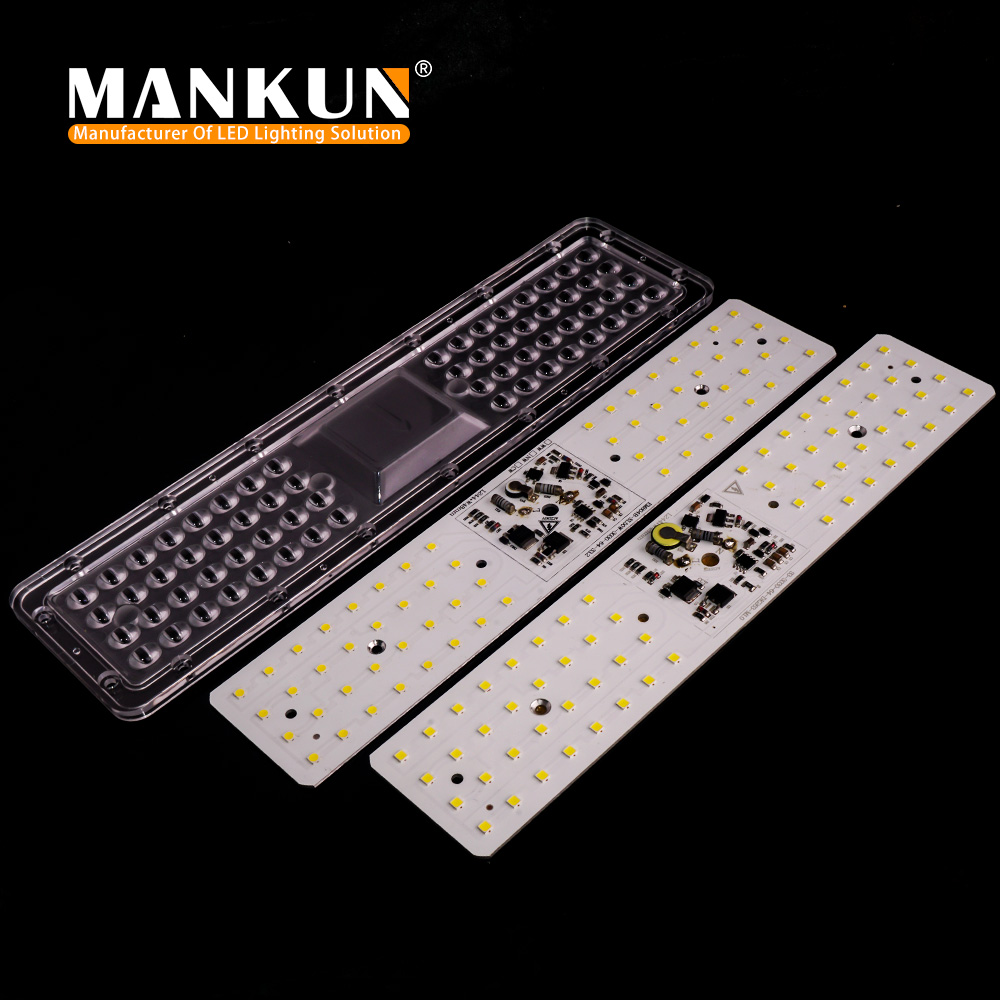

220V AC LED Module 50W With 64H Lens For LED Street Light Module
Description of AC LED module
Item# | MK263-64LEDS | Product name | AC led module |
Shape | Rectangle | LED Types | 3030 SMD 64LEDS |
Voltage | AC220VDC | Color | White |
LED Chip | Lumileds LED chip | Input Current | Max 250mA |
Dimension | 244*48*1.6mm | PCB Material | Aluminum base |
LED QTY's | 64pcs | Luminous Efficacy(lm/w) | 163 lm/W |
Operating temperature: | -40℃~50℃ | Input Wattage | MAX 53W |
Color Temperature(CCT): | 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | Certification | CE, RoHS, ETL |
Warranty(Year): | 3-5 Years | Applications | Outdoor Lighting, Flood Lighting, Street Lighting, etc. |
Features of AC LED module
1. Linear constant current IC control, photoelectric integration design with stable performance, high reliability, and long lifespan.
2. Over-voltage & over-current protection.
With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.
3. Over-temperature protection design.
When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.
4. High-quality 2835 LED with high color rendering index. Ra > 70.
5. Customized design and Manufacturing.
Customized service is available for custom PCB shape and size design, custom color temperature, custom LEDs, and so on.
FAQ of AC LED module?
Q1: Are you a factory or dealer?
A1: We are a real and professional manufacturer of driver-on-board LED modules with state-of-the-art technology.
Q2: What products are your main business?
A2: We Specialized in AC DOB LED modules, and driver-on-board quantum boards for grow lights.
Q3: How about your quality?
A3: Use top-quality material to make sure stable quality and enough
brightness, we supply high cost performance products. Every product
passed the test well and was then delivered to every client.
Q4: Can you offer customized design and manufacturing?
|
|
