Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | ManKun |
| Model Number : | 16309 |
| Certification : | ROHS UL |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 10000 SET /Month |
| Delivery Time : | 10-15 work days |

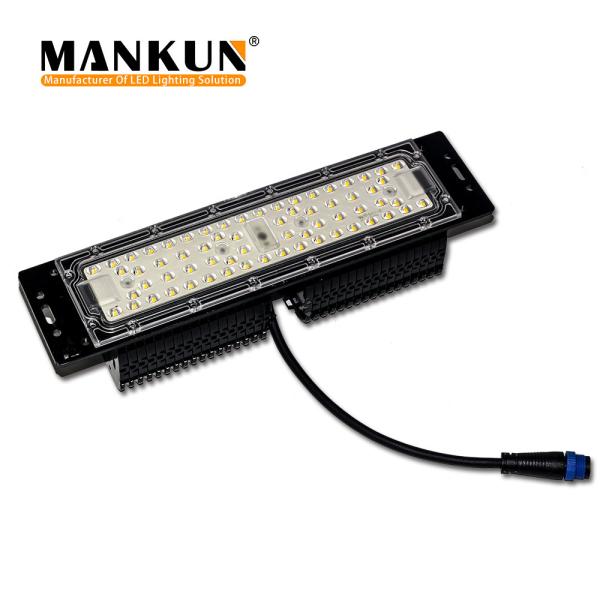

Led High Bay Light Module 125-145LM/W 50W Led Street Light Module
Product feature
1. High efficiency:120-190lm/W,50% higher than ordinary street light, compared with Sodium lamp, 80% energy saved
2. Eco-friendly: no lead, mercury, and other substances to make bad effects on the environment. And no UV, IR, and other harmful substances to human health. Compared with common street lights, it has no glare and is without light pollution to the surroundings.
3. Long lifespan: LM-80 certificated 5-8 times lifespan than the ordinary lamp, save maintenance cost.
4. Great reliability: No start-up delay, constant current drive, not affected by power fluctuations, no flicker.
5. Easy assembly and disassemble: Just install the lamp body to its place with screws, and loosen the screws when repaired.
6. LEDs packaged by mul-chips is high lumen, stable performance, low light failure, and no dead lights.
LED Module Specification
| Electric Data | ||||
| Model | DK252-50W-16309 | |||
| Power | 30W | 40W | 50W | 60W |
| Input | 30V/1A | 30V/1.33A | 30V/1.67A | 30V/2A |
| 36V/0.83A | 36V/1.11A | 36V/1.39A | 36V/1.67A | |
| 48V/0.63A | 48V/0.83A | 48V/1.04A | 48V/1.25A | |
| Photometric Specifications | ||||
| LEDs | 3030 LED | |||
| CRI | >70(>80,>90 optional) | |||
| Luminous Efficiency | 150lm/w | 145lm/w | 140lm/w | 135lm/w |
| Luminous Flux | 4500lm | 5800lm | 7000lm | 8100lm |
| CCT | 2800K/4000/5000K/5500K | |||
| Beam Angle | 24°,36°,60°,90°,145x100°,150x70°,150x85°,150x80° Vertical | |||
| LED Qty. | 64pcs(48V) | |||
| Mechanical Specifications | ||||
| IP Rate | IP67 | |||
| Working Environment | -40℃~50℃,20%~90% RH | |||
| Storage Temperature | -40℃~85℃,10%~90% RH | |||
| Body Material | Aluminum | |||
| Lens Material | PC | |||
| Connector Size | M15 | |||
| Wire Length | 200mm/300mm optional | |||
| Module Size(mm) | 300*75*50mm | |||
| ModuleSize(inch) | 11.81*2.95*1.97in | |||
| Lifespan | >50,000 Hours | |||
| Packing Information | ||||
| Module Dimension | 300x70x47mm | |||
| 40PCS/CTN | 525*330*365mm | |||
| N.W. | 0.42KG/pcs | |||
Precautions
Please read the following precautions carefully before you use the product.
This will guide you how to use it .
1. Warranty:5 years
2. Please Check the product and handle the product with care when open the package.
3. If the new product is found damaged, please keep the original package and contact us.
4. Please do not try to use the damaged Product.
5. In order to ensure the product work properly, please use the power supply within indicating voltage Range.
6. Please follow the installation instructions to install the product. Please do not touch the light while it is working.
7. Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
8. Please turn off the power supply for the base to avoid electric shock while installing and uninstalling the product.
9. Do not look directly to LED light source for a long time, because the high-intensity light source may cause harm to eyes.
10. The luminaries must be installed and repaired by a qualified electrician.
Application
Applies to workshop, industry sites, sports center, gas station, car park, waiting room, train station, harbor, wharf and other large energy-efficient lighting.
|
|
