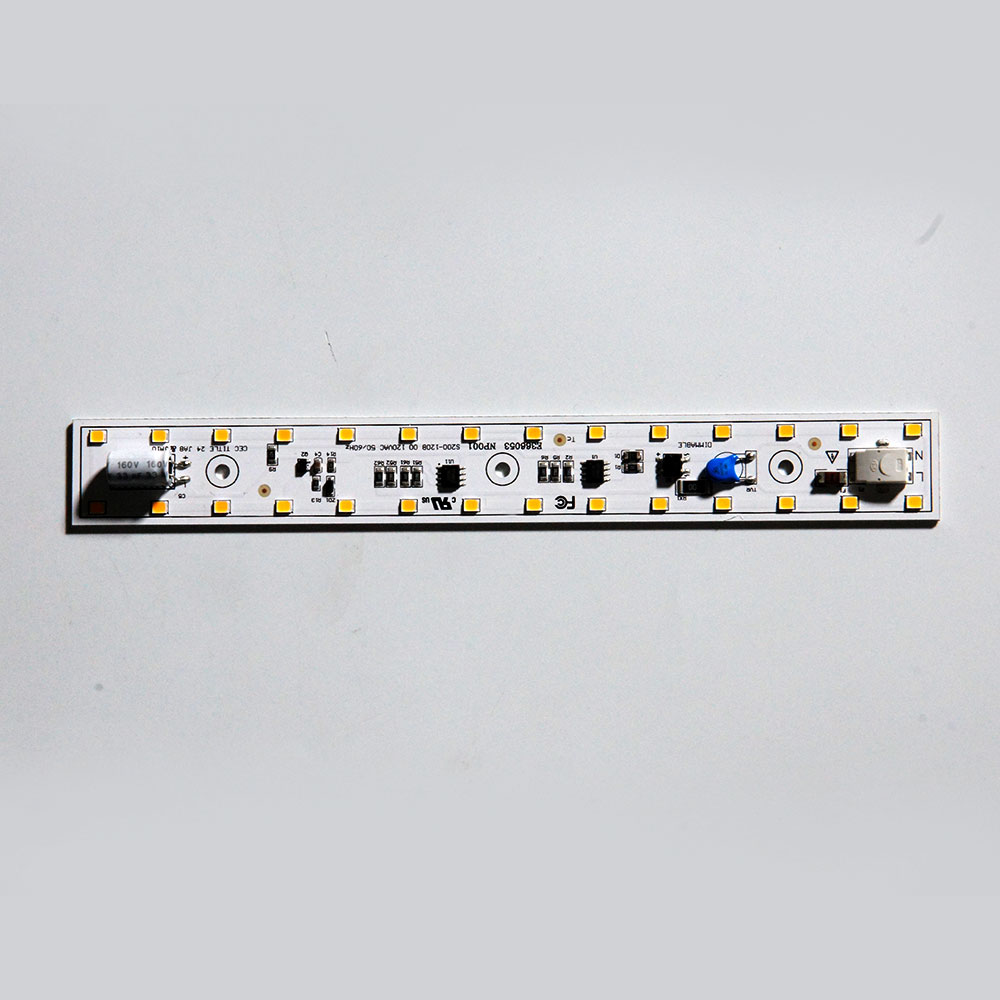

9W DOB Dimmable LED Module 3000K TRIAC Dimming For Linear Lighting
TRIAC Dimming, Linear Lighting, Flicker Free, 9W DOB Linear Dimmable LED Module
Specification
Material | Samsung 2835 LED |
PCB Size | 200*25*1.6mm |
Light Color | 3000 |
Input Voltage | AC110V / AC120V |
Power | 9W |
CRI | 90 |
Light Output | 1000lm @5000K Ra80 |
HiPot | 1.5KV AC |
Surge Protection | 2.5KV Ring Wave |
Certification | UL(E330904) |
Features | TRIAC Dimming,Flicker Free, Wago Connector |
Power | 120V 60Hz 9W |
Power Factor | 0.95 |
Product details
Product description
Dimmable constant current built-in LED module, particularly suitable for industrial applications in tough enviromments such as cold warehouses or factories with elevated ambient temperatures
The LED module is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 %
If being operated up to 50 °C ambient temperature for 100,000 h the LED driver offers a lower failure probability of less than 2.5 %
Dimming range 1 to 100 %
Output current adjustable between 150 – 400 mA
Max. output power 9 W
Suitable for mains voltage peaks (burst/surge) up to 4 kV
Expanded temperature range of -40 ... +70 °C
Nominal lifetime up to 100,000 h
3-5 years guarantee
Functions
Adjustable output current in 1-mA-steps (I-SELECT resistor or DALI)
Power-up fading at AC
Intelligent Temperature Guard (overtemperature protection)
Short-circuit protection
Overload protection
Constant light output function
Suitable for emergency escape lighting systems
Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
|
|
