25W Flick Free Triac Dimming LED Module For AC120V Ceiling Lighting
25w Flick Free Triac 230X230MM Dimming LED Module For AC120V Ceiling Lighting

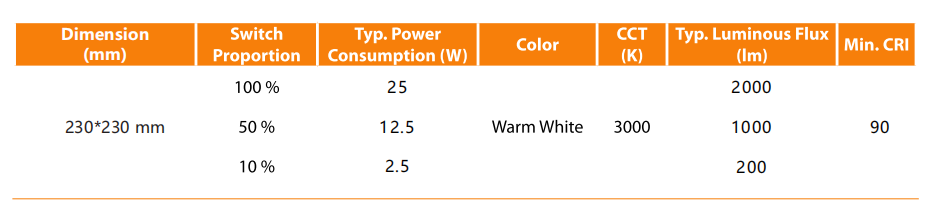

Specifications
Type: AC120V LED light board
LED type :2835SMD
Power: 25W
Color : Warm White
Color temperature : 3000K
Luminous efficacy: 100LM/W
Chip brand: Bridgelux
Color rendering index:>72
Stent material : Aluminum PCB
Beam Angle:120 degree
Input voltage : AC120V
Power factor: 0.9
Operating frequency :50/60HZ
Life:>50000Hr
Dimension : 230*230mm
Product feature :
1. Integrated silicone control dimming, AC120V direct input, and no
external AC / DC converter
2. Integrated integrated circuit technology, excluding electrolytic
capacitors and transformers.long-life
3. Regular standard size allow for more flexible and creative
lighting design
4. High power factor (0.90), low total harmonic distortion (20%)
5. High power conversion efficiency (90%)
6. Suitable for electronic dimmers.
Product applications :
1. Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting
4. Reading light
5. Craft flashlights, headlights
Features:
Compatible with TRIAC dimmers
Works in a 120V environment
High power factor
Low THD
Low flicker(<30%)
120V UL complianc
Notes:
1. Luminous flux and power consumption are measured at 120Vac, Tc=250C
2. Luminous flux has 10% tolerance.
3. Power consumption has 10% tolerance.
4. The hot-cold factor of Tc=250C and Tc=650C is 0.9.
5. Surge withstand in accordance with IEC61000-4-5.
|
|
