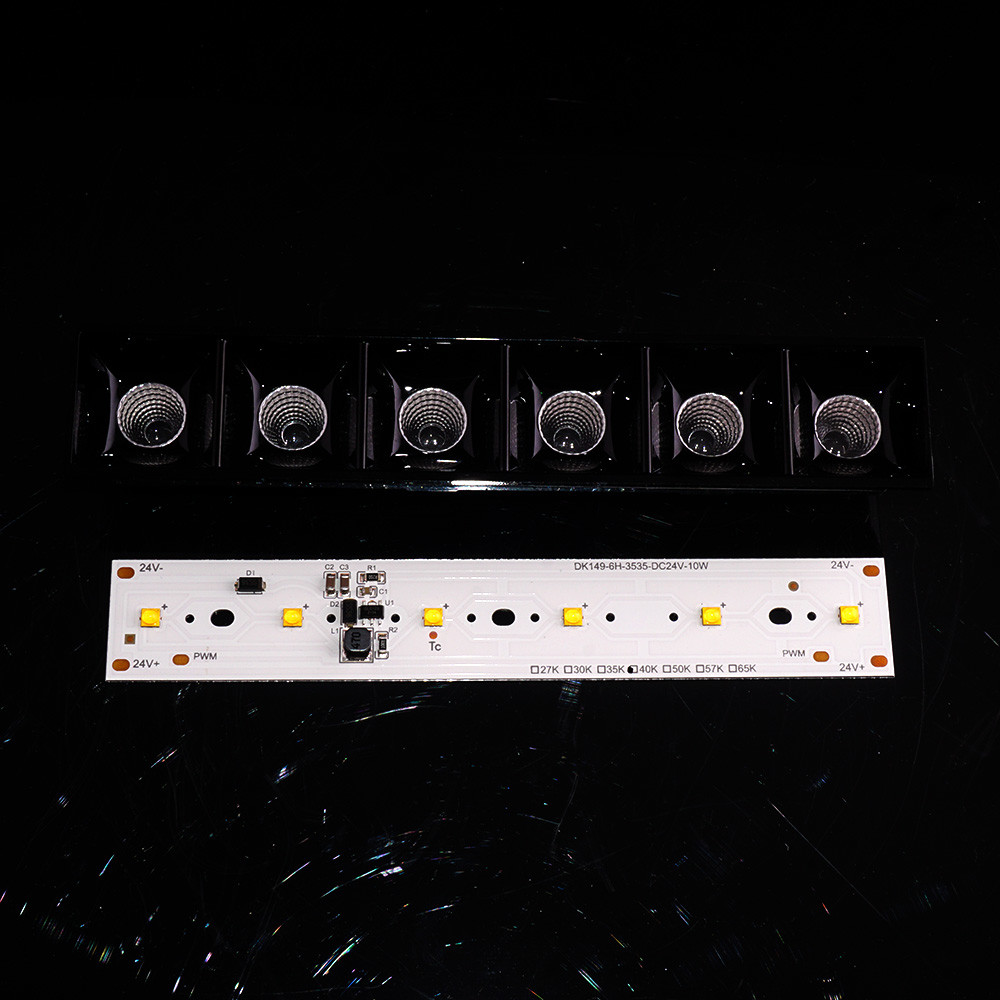

SMD3535 DC24V 10W Dimmable LED Module High Lumen PWM Dimming

High Lumen Warm color PWM Dimming 3535 DC24V 10W LED indoor module

1. Application

Indoor led lighting, commercial lighting, and so on.

• The DC LED module solution is one way to save cost on high Lumen LED lights.

• In 7 years of warranty, the cost of maintenance is free.

• Customized design in power factor, color temperature, CRI(Ra), luminous efficiency, and other detail applications.

• Differential designs assure customers to keep agility in developing new lights with their own brands in the light appearance and it’s marketing pricing strategy.

2. Advantage

• Dimming DC LED module, which can be dimmed.

• Material of High thermal conductivity, which is the most helpful for thermolysis.

• High lumen led chip, the light effect can be 120lm/w.

• Linear constant current IC control

• Over-voltage and over-current protection. With a five-channel constant power IC design, when input voltage varies between DC 10 and 36V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.

3. Manufacturer technology

• Print circuit board Solder mask. Taiyo PSR-2000 FR603W4, is a famous brand in Japan.

• Surface mountain technology, we use Alpha-Fry solder paste with a high-speed Samsung pick and place machine.

• 7 layers waterproof carton for LED module packing, can protect the product from shipping damage

4. Parameters

Color temperature: 3000K/4000K/5000K/5700K/6500K Options

CRI/Color rendering index: 90

Watt/Wattage: 10W

Input Voltage: DC24V

CREE LED chip.

Size: 148*24mm

Thickness: 1.2mm

Long lifespan: 3 years

Operation temperature: 30~45℃

Luminous angle: 120

Light effect: 100-150LM/W

PF: 0.9-0.95

Thermal Conductivity: 1W/M.K

LED size: 3535

Hertz/HZ: 50/60
