SMD2835 DC36V 60PCS Linear LED Module 4000K Color Temperature

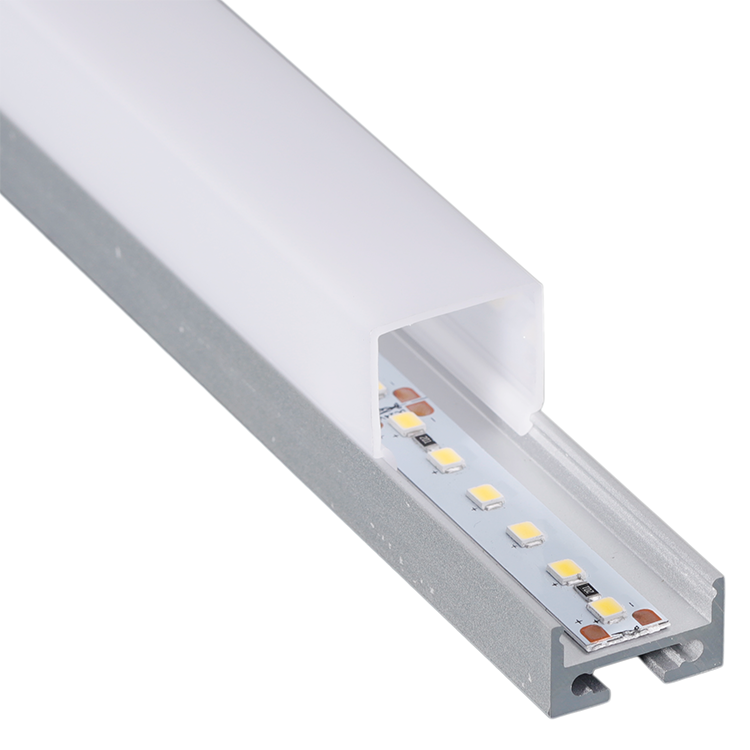

LED Strip Lighting 60leds SMD2835 36V Led Linear Module Hard Strip Bar Light
Performance characteristics:
Linear LED modules for application in linear and area lighting. |
Combinable modules for an optimal,extensive design.Perfect light uniformity. |
Ideal for residential,office,retail and industrial lighting. |
Extended lifetime >60.000h. |
Ta -250C...+550C, Tc 850C, Tp 750C. |
With a high lumen of up to 169lm/W. |
Small tolerance in color temperature of 3MacAdam(5 SDCM). |
CRI > 80 for use in all common applications. |
Easy electrical connection via push-in terminals with release option. |
Easy installation by means of screw fastening. |
It can reach the standard of SELV and non-SELV applications. |
Matrix-topology to avoid bigger dark zones in case of single LED failures. |
Gap distances is designed for voltages max.250 VDC. |
Product description
Product Name | 20w Led Linear module |
Light body material | Aluminum base |
Surface treatment | aluminum pcb |
Led Source | 48 pieces smd 3030 |
Color Temperature (CCT) | 3000K, 4000K, 6000K |
Input Voltage | DC36V |
Power Supply | NO driver |
Optional Functions | 0-10V dimming, DALI dimming, CCT dimming, 2.4G Dimming |
Beam angles | 120° |
Application | Home lighting, office lighting, studio lighting, shopping mall lighting etc. |
Specific technical data
CRI | CCT K | Current mA | Flux Tc 250C lm | Flux Tc 650C LM | Power Tc 650C W | Efficacy Tc 250C lm/W | Efficacy Tc 650C lm/W | lpk mA | Vmin. Tc 250C @lmin | Vmax. Tc 250C @lmax |
>80 | 3000 | 540 | 3408 | 3195 | 21.3 | 160 | 150 | 1200 | 36.5 | 39.5 |
700 | 4210 | 3933 | 27.7 | 152 | 142 | |||||
800 | 4676 | 4360 | 31.6 | 148 | 138 | |||||
4000 | 540 | 3578 | 3344 | 21.3 | 168 | 157 | ||||
700 | 4432 | 4127 | 27.7 | 160 | 149 | |||||
800 | 4898 | 4898 | 31.6 | 155 | 145 | |||||
5000 | 540 | 3621 | 3408 | 21.3 | 170 | 160 | ||||
700 | 4515 | 4210 | 27.7 | 163 | 152 | |||||
800 | 4992 | 4676 | 31.6 | 158 | 148 | |||||
The mentioned data can have a 10% tolerance. | ||||||||||
|
|
