Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Model Number : | DK-252*70-60-TP-84H1 |
| Certification : | CE,UL,ROSH |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 5000000 Piece/Pieces per Month |
| Delivery Time : | 5-8 work days |

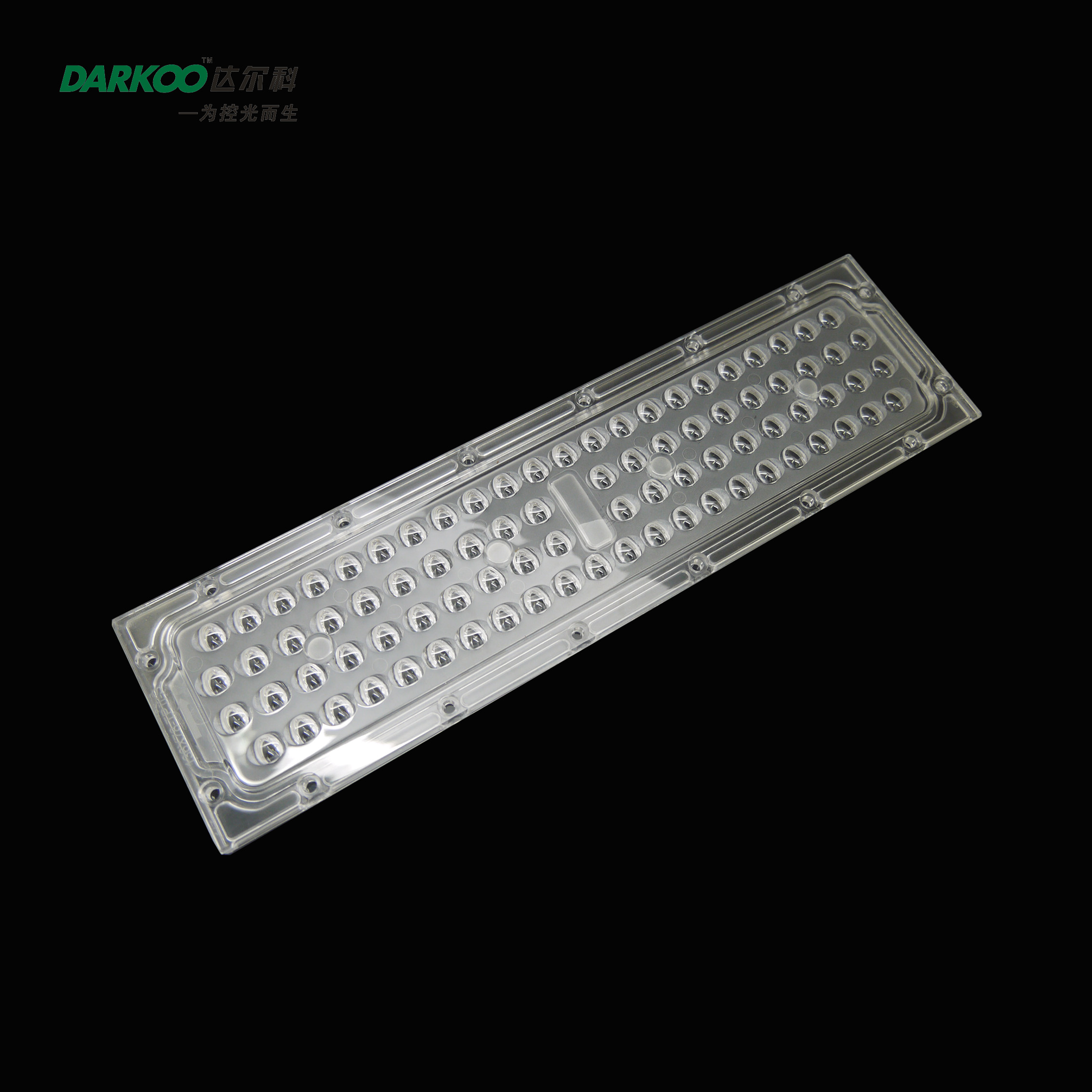

Optical 252mm SMD LED Lens 60 Degree For Outdoor Street Light
Outdoor Lighting Lens Optical Lens 252mm 60 Degree Smd Led Lens For Street Light
Specification
1) Type | 60 degree street light lens 3030 |
2) Model No. | DK-252*70-60-TP-84H1 |

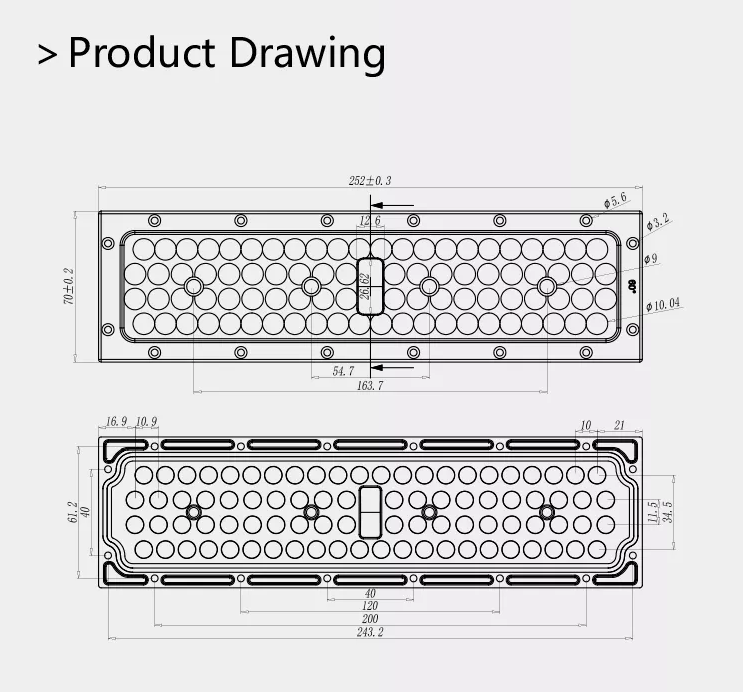

3) Lens Size | 252*70*7.5MM |
4)Beam Angle | 15° 25° 40° 60° 90° 120° |
5)LED Series | 3030 2835 |
6)Material | Optical grade PMMA |
7)Temperature Resistance | -35℃~+120 ℃ |
8)Lead Time | 3-7 days for sample order,7-15 days for mass product |
9)Application | Street light lens, flood light lens, tunnel light lens, track light etc. |
Product Details
Product combined with Geometric Surface Design,High light efficiency;
On the basic character of SMD 3030 series light, show the application of the Combination of optical and construction.
Product outline
We provide 2 years' warranty. Our lens is made of new import Anti-UV PC materials .
We can help you to open new lens mold according your design and requirements.
Optics Report
Lens ( 60 degree )Optics Report
The lens has high light transmittance and is not easy to yellow. It has passed the UL certification
|
|
