Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | Meanwell |
| Price : | USD 40 PCS |
| Payment Terms : | Western Union, T/T |
| Supply Ability : | 10000 PCS/Month |
| Delivery Time : | 5-8 work days |
| Model Number : | XLG series |

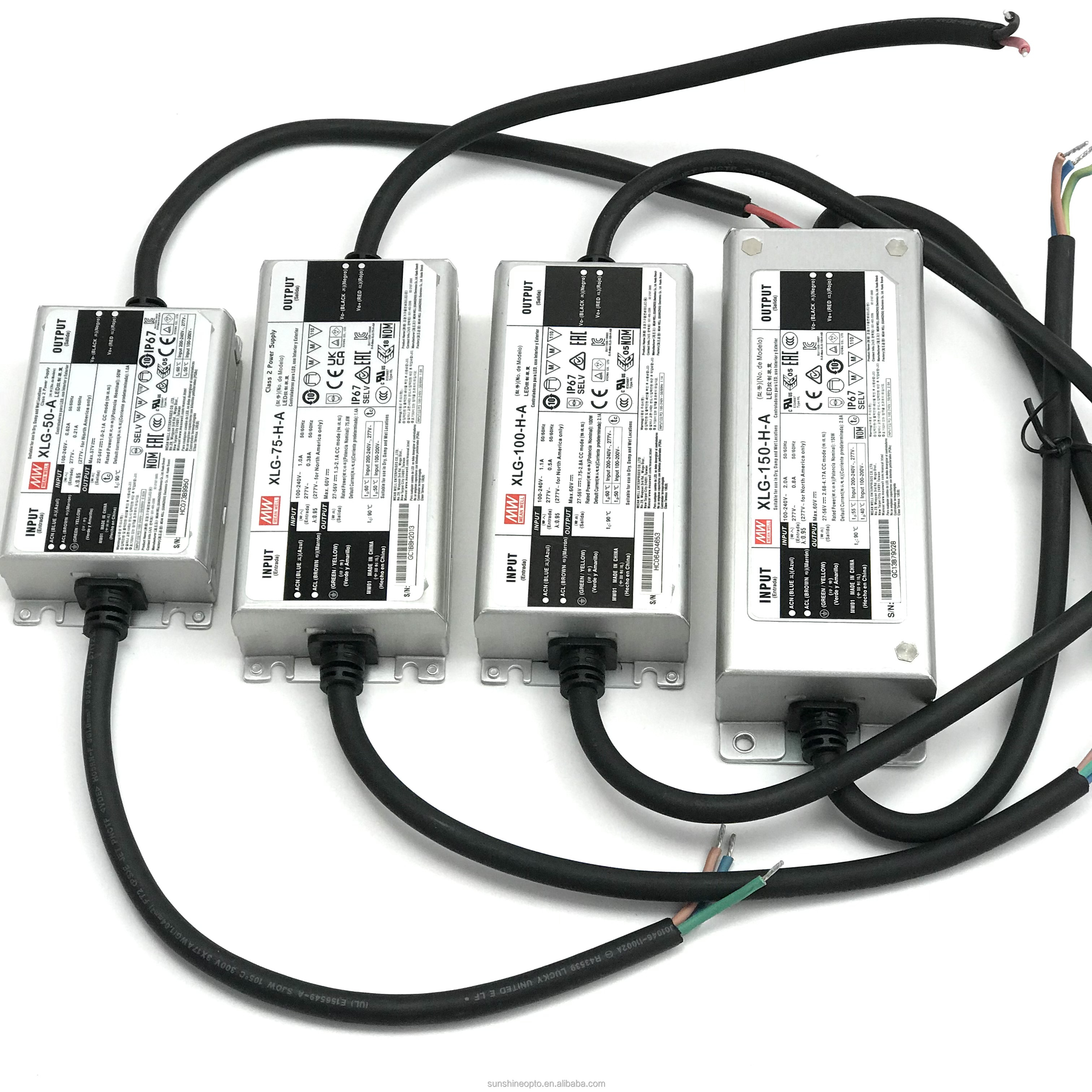

PFC Function LED Driver Module Meanwell XLG Series Constant Power
Ip67 XLG Series Led Driver Module Constant Power Street Light Led Driver
Product details
Product Description
Constant Current mode output |
Metal housing design with functional Ground |
Built-in active PFC function |
No load / Standby power consumption < 0.5W |
IP67 / IP65 rating for indoor or outdoor installations |
Function options:out put adjustable via potentiometer; |
3 in 1 diming (dim-to-off);Smart timer dimming;DALI |
Auxiliary DC output |
Typical lifetime>50000 hours |
5 Years warranty |
Applications: |
LED street lighting |
LED architectural lighting |
LED bay lighting |
LED floodlighting |
LED greenhouse lighting |
Type "HL" for use in Class I,Division 2 hazardous (Classified) location |
Wattage :
20W~240W
Features :
1, Wide input range 100~305VAC (90~305VAC for XLG-20)
2, Constant power mode with adjustable output current (Constant
current mode for XLG-20)
3, Built-in active PFC function and Efficiency up to 90%
4, Dimming functions with 3 in 1
5, Protections: Short circuit/ Over voltage/ Over temperature
6, Surge protection with 6KV(L/N-FG)/4KV(L-N); 4KV(L/N-FG)/2KV(L-N)
for XLG-20
7, 5 years warranty
|
|
