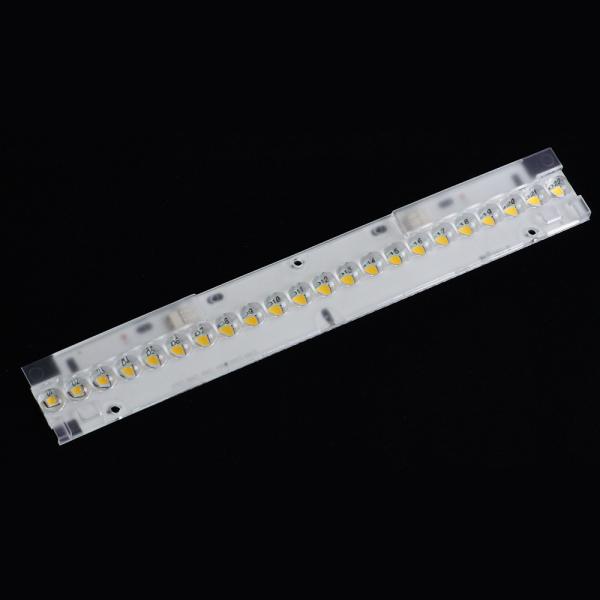

SMD2835 SMD3030 LED Linear Lens ZHAGA Module 30 90 Degree Angle
LED Linear Lens 2835 3030 Strip Lens ZHAGA Module 30 90 Degree
Specification
Brand | Darkoo |
Product Type | DK-280*40-30-LENS-28H1 |
Product Specification | 280*40*6.3MM |
Angle | 30°/30*90°/90*90° |
Material | Optical grade PMMA |
Temperature Resistance | -35°C + 105°C |
LED Series | 2835/3030 |
Product Applications | LED Linear Lighting |
Quick Detail :
Model No.: | DK-280*40-30-LENS-30H1 |
Angle: | 90*120°,80*150°,80*150°Vertical for choose , |
Lens Size: | 280*40*6.3MM |
PCB Size: | 280x40x1.5mm |
Lens Material: | Optical grade PC |
Circuit: | 10 series 3 parallel |
LED: | 30 pcs 3030 SMD LED |
Model No.: | DK-280*40-30-LENS-22H1 |
Angle: | 90*120°,80*150°,80*150°Vertical for choose , |
Lens Size: | 280*40*6.3MM |
PCB Size: | 280x40x1.5mm |
Lens Material: | Optical grade PC |
Circuit: | 11 series 2 parallel |
LED: | 22 pcs 2835 SMD LED |
LINNEA
Linear lenses with integrated clip fixing compatible with many different LED modules on the market
285 x 40 mm free pitch design optimized for the most common Zhaga mid-power 20 and 40 mm wide PCBs
LINNEA is a low profile linear design family that allows lenses to be attached seamlessly together and fitted into many existing luminaire designs. It provides high quality indoor lighting with reduced glare. Fastening the optic with integrated clips and dedicated snap-on end part accessories makes the whole installation process quck and easy.
The family consists of a variety of symmetrical and asymmetrical beams and includes versions optimized for the most common Zhaga mid-power 20 and 40 mm wide PCBs or for Signify’s Fortimo Edge 2-row LED module.
|
|
