Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 100000 Piece/Pieces per Month |
| Delivery Time : | 5-25 work days |
| Model Number : | CK-143P-18W |

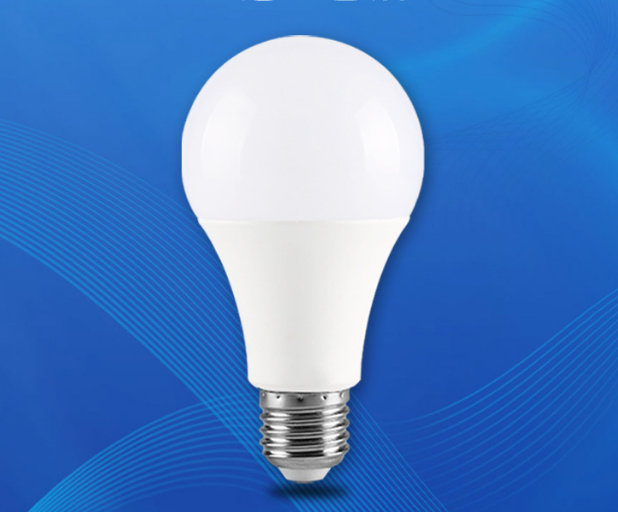

Diameter 55mm Ra80 18W LED Module 22PCS SMD2835 DOB LED Bulb
Diameter 55mm 100lm/W Ra80 18W AC LED Module Driverless Ac Dob Led Bulb
Input characteristics & Electrical
Classicication | Subject of entry | |
Input characteristics | Rated input voltage | 175-265Vac |
Range input voltage | 175-265Vac | |
Input current | <0.07A | |
Input frequency | 50/60Hz | |
Input frequency range | 47-63Hz | |
Turn on delay time | ≤500ms | |
No-load power consumption | ≤1W | |
Inrush current | <50A | |
Power factor(@70%Load to Full load) | ≤0.5 | |
THD(@70%Load to Full load) | ≤20% |
Output Characteristics
Constant Current Mode | |||||||
Model No. | Output Voltage range/ (V) | Rated Current (mA) | OVP(V) | Output power(Rated) )(W) | Efficiency | Output ripple(peak to peak) ① | |
@175Vac | @265Vac | ||||||
CK-143P-5W | 36-39 | 115 | / | 5.2 | ≥0.92 | ≥0.92 | <4V |
CK-143P-7W | 54-58 | 115 | / | 7.3 | ≥0.92 | ≥0.92 | <4V |
CK-143P-9W | 66-70 | 115 | / | 9.3 | ≥0.92 | ≥0.92 | <4V |
CK-143P-12W | 84-90 | 115 | / | 12.2 | ≥0.92 | ≥0.92 | <4V |
CK-143P-15W | 108-115 | 115 | / | 15 | ≥0.92 | ≥0.92 | <4V |
CK-143P-18W | 144-154 | 115 | / | 18.2 | ≥0.92 | ≥0.92 | <4V |
protection Characteristics
1.3.1 Short circuit protection
Hiccup/short happened between the output terminals and shall not result in fire and any damage.
The power no output, output will auto recover upon removal of over load.
1.3.2 Other protection
Rely on input fusing.
1.3.3 Inrush current Waveform
Environmental
Classicication | Subject of entry | |
Safety&EMC | Safety Standards | / |
EMC | / | |
Hi-Pot | I/P-O/P | / |
I/P-FG | / | |
O/P-FG | / | |
lightning surge | ICE61000-4-5 | / |
/ | ||
Insulation Resistance | I/P-O/P; O/P-FG; I/P-FG | / |
Leakage current | 277Vac input / 277V | <0.75mA |
Environmental | MTBF | 200,000 hours at 25℃ ambient temperature |
Operation temperature | -40 ℃ to 40 ℃ | |
Humidity | 10% to 90% | |
Storage temperature | -40℃ to 85℃ | |
Protection Class | / | |
Environment rating | / | |
Case Size | A80 |
Product details
Input Voltage | AC 220-240V 50/60Hz |
Power Consumption | 18W |
Anti-Surge Class | 1.0KV |
Color rendering index | Ra 80 |
Luminous Efficiency | 120 lm/W |
Thermal Conductivity | 1.0W/m.K |
PCB Size | D55mm*1.0mm |
Emitting Color | White color |
|
|
