DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

Guangzhou Mankun Electronic Co., Ltd.
Contact Now
    Buy cheap DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp from wholesalers

    Buy cheap DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp from wholesalers
    • Buy cheap DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp from wholesalers
    • Buy cheap DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp from wholesalers
    • Buy cheap DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp from wholesalers

    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

    Ask Lasest Price
    Brand Name : MANKUN
    Model Number : 15550
    Price :
    Payment Terms : Negotiable
    Supply Ability : 100000pcs per month
    Delivery Time : 7-15 work days
    Certification : UL,CE.Rosh
    • Product Details
    • Company Profile

    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp


    DC48V 4 Lens Lamp 50W Led Module Street Light Injection LED Street Lighting


    Features:

    • Lumileds LEDs, single unit’s damage won't affect others' normal work;

    • The most complete optical engine in the world;

    • Multiple lighting distributions available;

    • Wide power range: 40W, 50W, 60W;

    • IP68 - highest waterproof level, hot pluggable, easy for installation and replacement;

    • Independent intellectual property rights;

    • Easy tool onsite maintenance and repair;

    • 5-year limited warranty.

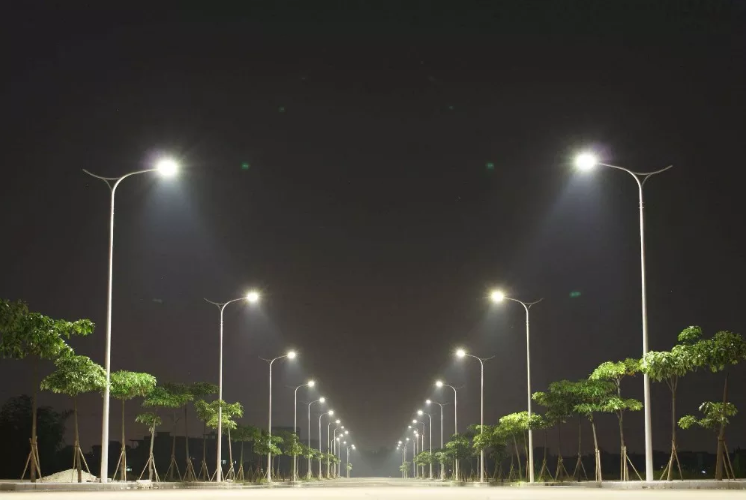

    • street light

    • high bay lights

    • tunnel lights,

    • flood/spot lights

    • Traditional retrofit light


    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

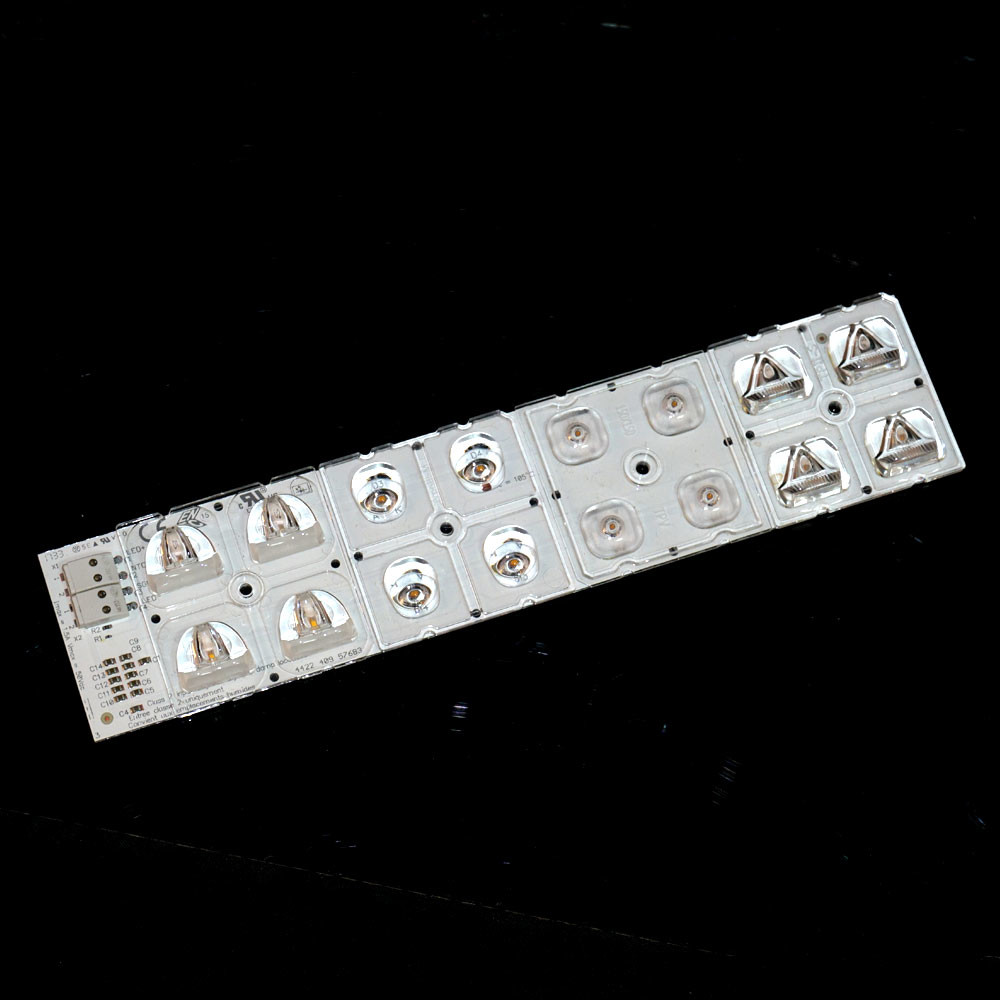

    PCB Board Details


    PCB Size :223*49*1.6 mm

    PCB Circuit :16 series 1 parallel

    Match Led :3535 led


    Led Lens Details


    Lens Size :50x50mm

    Lens Angle :136x78,30,60,90,12 degree

    Lens material :optical grade PCLed Lens Details


    DK252-16H1-157*57-TPII-S-V

    Lens Size :252x70mm

    Lens Angle :136x78 degree

    Lens material :optical grade PC

    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp

    DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp



    Main parameter:


    LED Light Source

    3535 LEDs, 16pcs

    Output Power

    30W,40W,50W,60w

    Luminous Flux

    4650lm~ 8700lm

    Input Current

    350mA,700mA, 1050mA,1200mA

    Input Voltage Range

    40-54Vdc

    Lighting Distributions

    Type I Short Type II Short Type II Medium 25°, 40°, 60°, 90°

    CCT

    3000K, 4000K, 5000K, 5700K

    LED Chip

    LumiLEDs,Cree,Osarm

    Product Fixture Size

    252*70*20mm

    Packing Details




    Quality DC48V 50W Injection LED Lighting Modules High Power 4 Lens Lamp for sale
