Application Description:

This product is suitable for the lead-free reflow soldering process. According to DIN EN 61760-1 and DIN EN 60068-2-58 standards, the maximum temperature it can withstand is 260 ℃. As the components to be processed for specific applications vary in specifications, structures, accuracy, etc., and the welding machines and fluxes used by users are different, we recommend users conduct tests before formal welding to ensure a high fit between products and production processes.

Explain

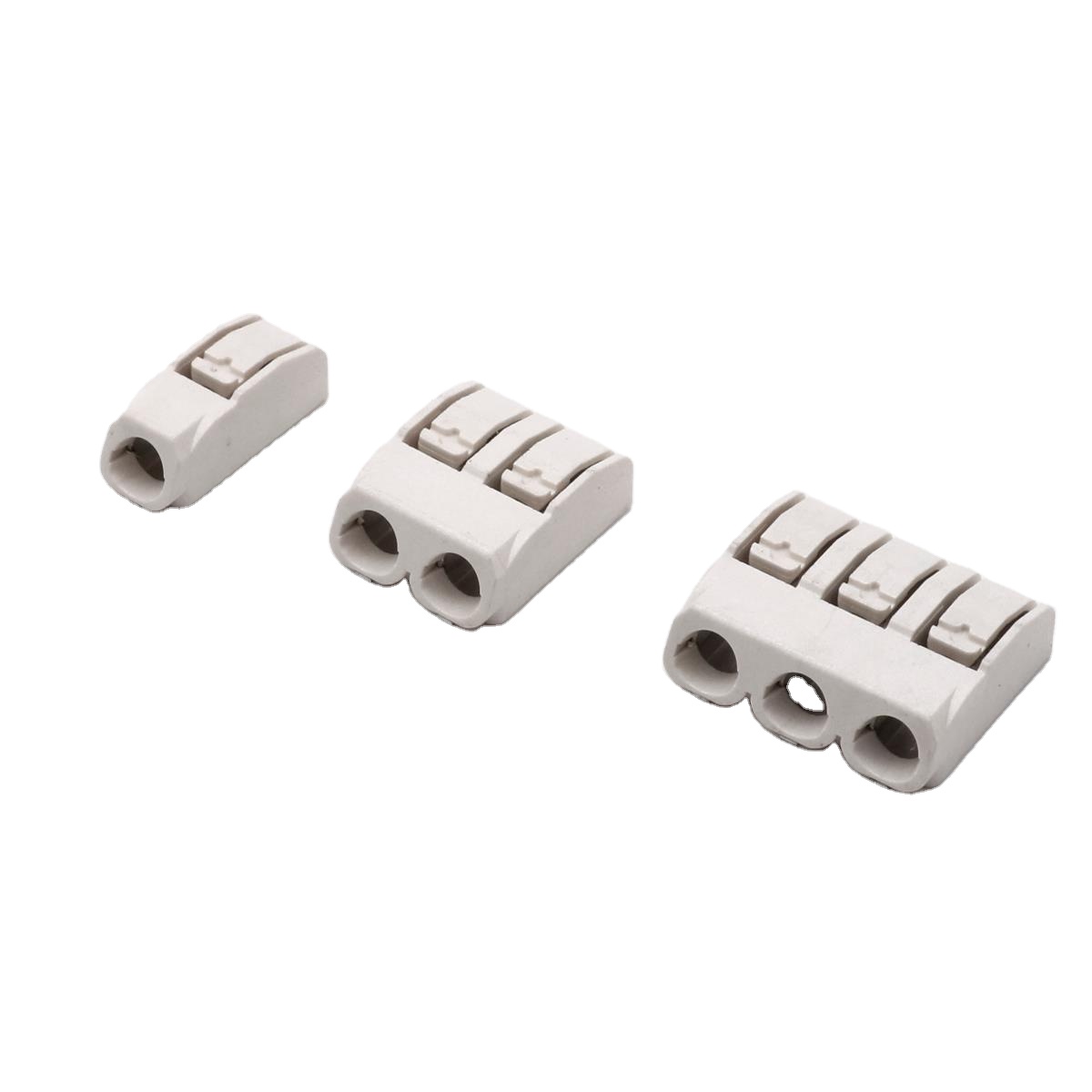

Because the specific temperature and time of reflow soldering will vary, the wiring terminals may have a certain color deviation. However, it will not affect the use function of the wiring terminal.

Proposal

Suggestions for SMD (surface mount device) location template:

Formwork thickness: 150 m. In addition, the opening position of the template shall be consistent with the welding hole on the PCB.

Connection

MANKUN electronics co., ltd. was founded in August 2005, is a collection of LED lighting PCB circuit board research and development, production, and sales in one of the highly Modern enterprises with new technology. Has a number of imported automatic production lines, a strict management system, and excellent technology research and development and management talent, and in February 2008 established Taiwan Mankun electronics co., LTD.

Professional PCB PCB is engaged in the production of the single and double aluminum substrate, copper substrate, FR4 fiberboard, multilayer PCB, and flflexible PCB. A complete set of imported advanced circuit board production equipment and electronic mounting equipment. The products are mainly used in LED lighting (LED commercial lighting, LED indoor and outdoor lighting, LED industrial lighting, LED vehicle lighting) electronics, machinery, communications, medical and other areas with high heat dissipation requirements; The company has passed UL certifification (certifificate number: E334090) excellent quality circuit board manufacturers.

Our company is the honoree of the " the quality first, keep improving" policy, with strong research and development capacity, and a number of patents to lay a solid foundation. Our products are widely exported to America, Russia, South Korea, other countries, and so on. Our company adheres to the Customer-oriented, with the best quality, best efficiency, and best service, to create the highest value for customers at home and abroad.
