Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | MANKUN |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Model Number : | 15620 |
| Payment Terms : | Negotiation |
| Delivery Time : | 5-10 work days |

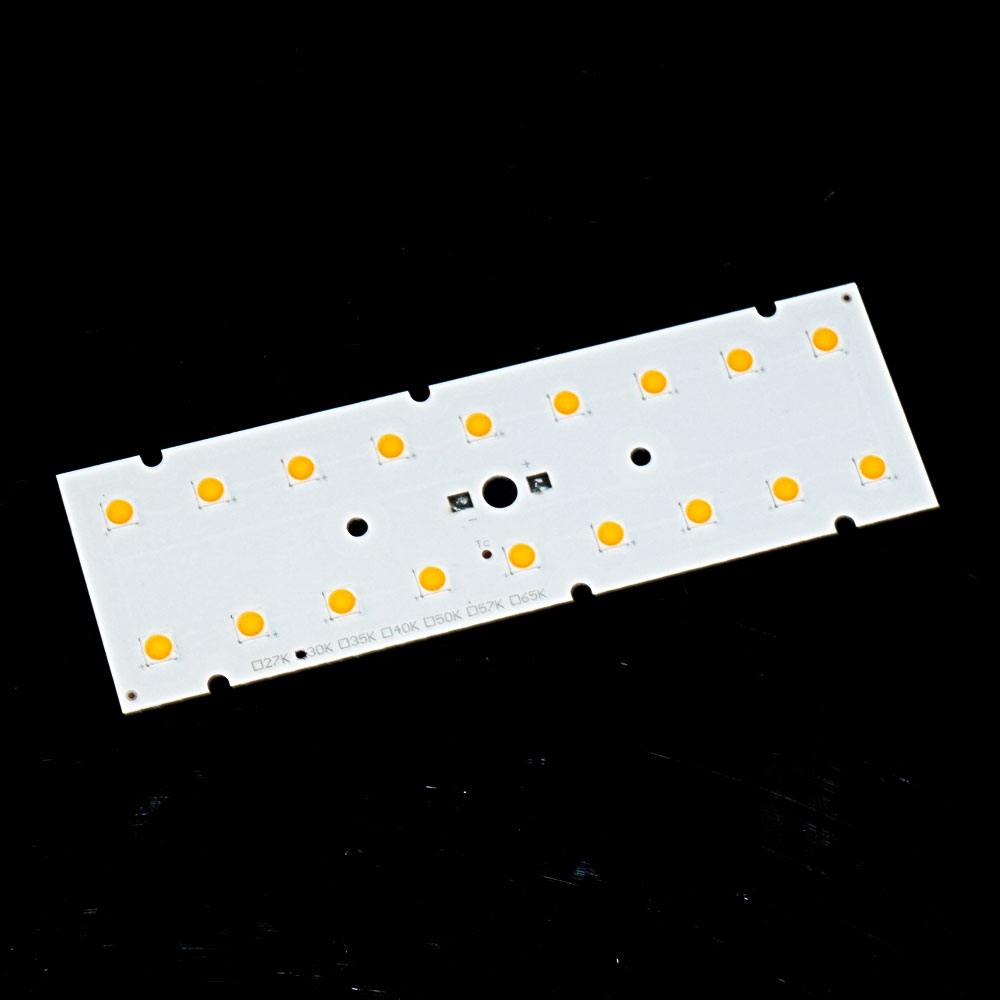

Customized 18PCS PCB LED Module SMD 5050 Lighting Circuitry Design
PCBA Module Customized PCB Board 18 PCS 5050 SMD Led PCB Module Outdoorlight
Type AL15620
Dimension MCPCB 145*45mm
PCB Thickness 1.6mm
Smd 5050 18pcs LED module 50W
Input Voltage DC48V
Beam characteristic 120º
Color temperatures (3000 K / 4000 K / 5000K)
CRI>80 (CRI90 Available on request)
Perfect for existing or new lamps
High efficiency of up to 154LM/W
Excellent color consistency of 5 SDCM
Long life-time: 50,000 hours
Wide operating thermal range
Optical flexibility via third party lenses
Instant full light
Advantage:
1) The luminous efficiency of the energy-saving module is 130-160lm
/ W, more than 51% of that of ordinary LED lamps
2) Environmental protection: lead-free, mercury free, ultraviolet,
infrared, etc
3) Long service life: the service life is 5-8 times that of similar
traditional lamps, saving maintenance costs.
4) High efficiency and stability: no start delay, constant current
drive, no influence of power grid fluctuation and no flicker.
5) Easy installation and replacement: just fix the lamp body on the
radiator at the installation position and loosen the screws during
maintenance to remove the module.
6) High performance light distribution scheme: on the premise of
meeting the light distribution requirements of road lighting design
standards, the ultra-high-order free-form surface is used as the
LED light lens with uniform brightness, which further improves the
brightness, illumination uniformity and geometric utilization.
7) The module can adopt plug-in and plug-in design, which is
convenient for maintenance, assembly, spare parts and inventory.
SpecificationProduct Name | Type 15620 |
PCB Size | 145*45mm |
PCB Thickness | 1.6mm |
Light body material | Aluminum base |
Surface treatment | aluminum pcb + pc lens |
Led Source | 18 pieces smd 5050 |
Color Temperature (CCT) | 3000K, 4000K, 6000K |
Input Voltage | DC48V |
Power | 50W |
Beam angles | 120° |
|
|
