    ZHAGA 208*200mm AC230V 30W DOB LED Module 5000K Color Temperature

    Ask Lasest Price
    Brand Name : mankun
    Certification : ce, RoHS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 500000 Piece/Pieces per Month
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    ZHAGA 208*200mm AC230V 30W DOB LED Module 5000K Color Temperature

    ZHAGA 208*200mm AC230V 30W DOB LED Module 5000K Color Temperature

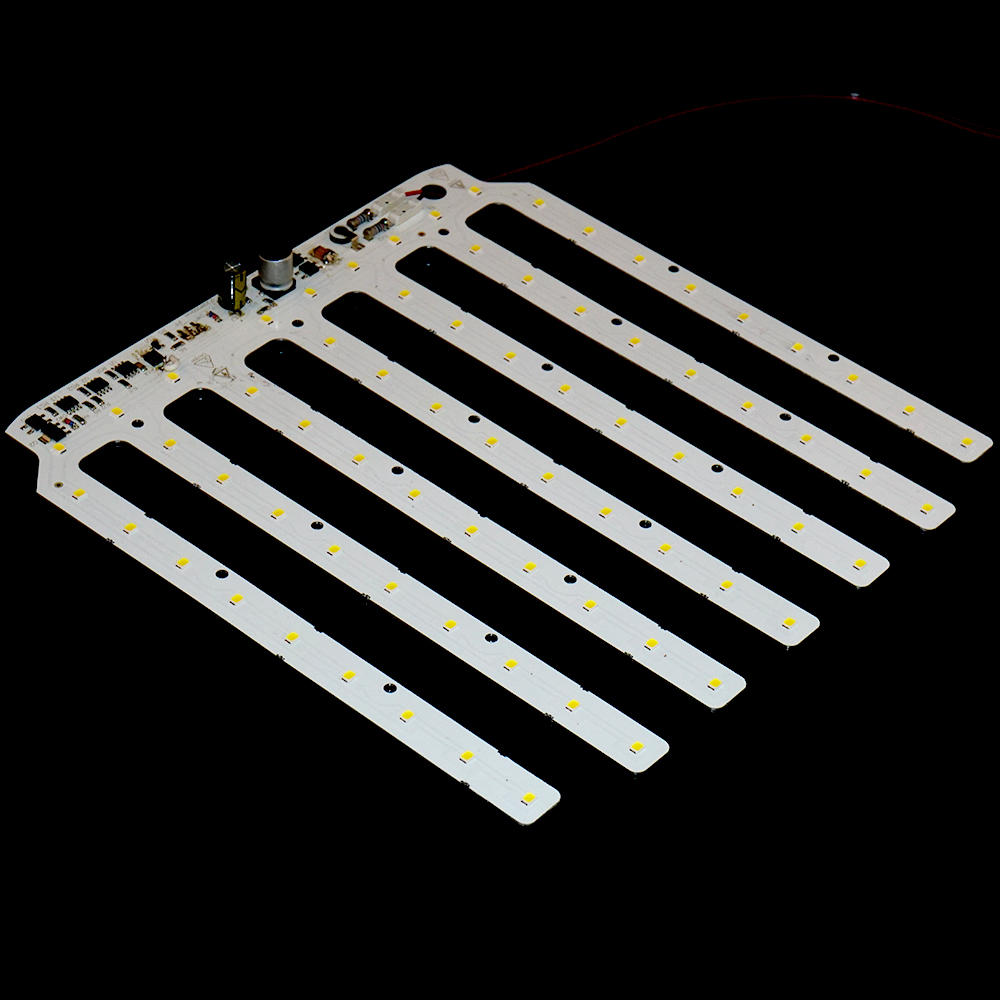

    ZHAGA 208*200mm AC 230V Ceiling Light LED Module 30W For DOB Led Panel Lights

    Specification

    * AC230V integrated driver, high reliability,PF>0.98
    * With OVP, OTP and OCP pProtection,
    * 4KV surge protection(optional),
    * LED 2835 ,CRI>80,
    * CE, RoHS, FCC,SAA,RCM certification
    * 3000K,4000K,5000K,6000K
    * THD<15%
    * High thermal conductive PCB,thermal conductivity reaches 7.9, effectively reduce the LED temperature.
    * Long lifespan>50,000h,3 years warranty
    * The 30w AC led module can use in high bay light,flood light,street light,downlight and so on.

    PROTOTYPES

    1. This led Bulb light module has a small size can match a variety of lamp housing .
    2. Whole led light module use smd 2835/3030 leds ,High quality leds guarantee long life .
    3. We have a competitive price for 2835/3030 leds .
    4. We can according your requirements to customized PCB board and Shell kit.


    Type
    LED CHIP
    LED QTY
    CCT
    CRI
    Voltage
    Power
    PCB's Size
    DK280-15844
    2835
    30PCS
    3000K/4000K
    >80
    DC30V
    15W
    280*40*1.6mm
    DK280-15845
    2835
    22PCS
    3000K/4000K
    >80
    DC33V
    10W
    280*40*1.6mm
    DK280-15846
    2835
    28PCS
    3000K/4000K
    >80
    DC42V
    13W
    280*40*1.6mm
    DK280-15847
    3030
    30PCS
    3000K/4000K
    >80
    DC60V
    30W
    280*40*1.6mm
    DK280-16466
    3030
    30PCS
    3000K/4000K
    >80
    DC30V
    30W
    280*40*1.6mm
    DK280-15848
    3030
    22PCS
    3000K/4000K
    >80
    DC66V
    20W
    280*40*1.6mm
    DK280-15849
    3030
    28PCS
    3000K/4000K
    >80
    DC84V
    25W
    280*40*1.6mm
    DK280-15850
    5630
    30PCS
    3000K/4000K
    >80
    DC30V
    15W
    280*40*1.6mm
    DK280-15851
    5630
    22PCS
    3000K/4000K
    >80
    DC33V
    10W
    280*40*1.6mm
    DK280-15852
    5630
    28PCS
    3000K/4000K
    >80
    DC42V
    13W
    280*40*1.6mm
    DK280-15853
    2835
    44PCS
    3000K/4000K
    >80
    DC66V
    20W
    560*40*1.6mm
    DK280-15854
    3030
    44PCS
    3000K/4000K
    >80
    DC132V
    40W
    560*40*1.6mm
    DK280-15855
    5630
    44PCS
    3000K/4000K
    >80
    DC66V
    20W
    560*40*1.6mm

    Type
    LED CHIP
    LED QTY
    CCT
    CRI
    Voltage
    Power
    PCB's Size
    DK286-15856
    2835
    33PCS
    3000K/4000K
    >80
    DC33V
    15W
    280*55*1.6mm
    DK286-15857
    3030
    33PCS
    3000K/4000K
    >80
    DC66V
    30W
    280*55*1.6mm
    DK286-15858
    5630
    33PCS
    3000K/4000K
    >80
    DC33V
    15W
    280*55*1.6mm
    DK286-15859
    2835
    33PCS
    3000K/4000K
    >80
    DC33V
    15W
    280*55*1.6mm
    DK286-15860
    3030
    33PCS
    3000K/4000K
    >80
    DC66V
    30W
    280*55*1.6mm
    DK286-15861
    5630
    33PCS
    3000K/4000K
    >80
    DC33V
    15W
    280*55*1.6mm
    DK286-15862
    2835
    66PCS
    3000K/4000K
    >80
    DC66V
    30W
    565*55*1.6mm
    DK286-15863
    3030
    66PCS
    3000K/4000K
    >80
    DC132V
    60W
    565*55*1.6mm
    DK286-15864
    5630
    66PCS
    3000K/4000K
    >80
    DC66V
    30W
    565*55*1.6mm
