Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | MANKUN |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 50000 Piece/Pieces per Week AC Led Module |
| Delivery Time : | 5-10 Work days |

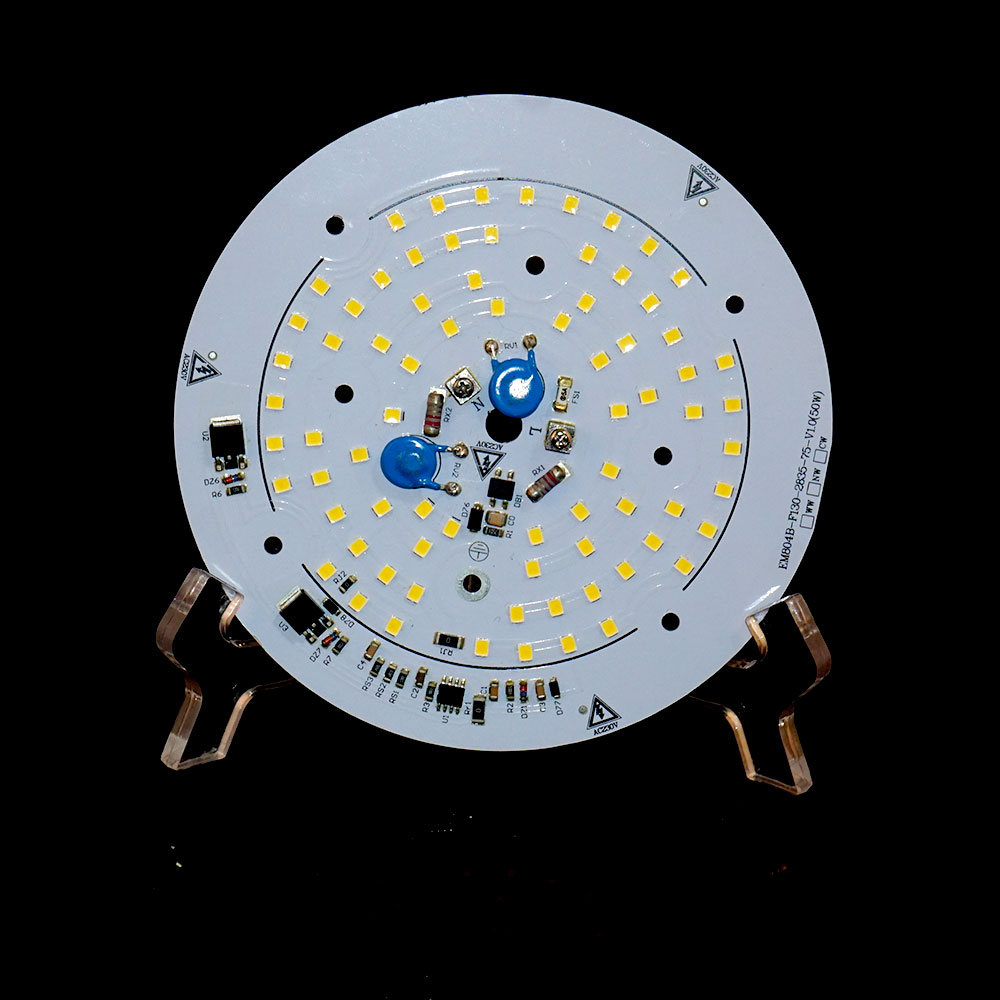

AC220V Input DOB LED Module Without Driver Aluminium Based PCB Board
50w Dob Led Module Without Driver 220V AC Input Led Module For LED Highbay Light
Specification
Quick details:
* AC integrated driver, high reliability,PF>0.98
* With OVP, OTP and OCP pProtection,
* 4KV surge protection(optional),
* LED 2835 ,CRI>80,
* CE, RoHS, FCC,SAA,RCM certification
* 3000K,4000K,5000K,6000K
* THD<15%
* High thermal conductive PCB,thermal conductivity reaches 7.9,
effectively reduce the LED temperature.
* Long lifespan>30,000h,3 years warranty
* The 50w AC led module can use in high bay light,flood
light,street light,downlight and so on.
50W AC Linear LED Module | ||
Led source: | SMD 2835 | |
Rated Watts: | 50W | |
Input Voltage: | AC190-270V | |
PF: | 0.98 | |
Surge protector | 4KV surge protection on board | |
Lux(lm/w): | 135lm/w±5% | |
CCT(K): | 3000-6000K | |
Ra: | >80 | |
Beam angle: | 120° | |
Material: | PCB2.0(high-conductivity) | |
life span(H): | >30,000 | |
Operating temperature: | -30℃ ~ 55℃ | |
Size: | D130*2.0mm | |
Type | 50W DOB Moudle |
Place of Origin | Guangdong, China |
Brand Name | New spectrum-AC DOB |
Power | 50W |
Voltage | 220 V - 240 V |
PF | >0.91 |
Color Temperature | 3000-6500k |
Certification | CE, RoHS |
Chip Material | Aluminum |
Chip Brand | Newspectrum |
Emitting Color | Warm White |
Luminous Intensity | 120LM/W |
Power Dissipation | 0.02 |
Warranty(Year) | 2-Years |
Color Rendering Index(Ra) | >80 |
Luminous Flux(lm) | 2000-5000 |
Optical Attenuation(%) | 10% |
Viewing Angle(°) | 120 |
Product name | AC DOB |
Lifespan | 60000 Hours |
Application | downlight spotlight plant grow light |
Customized | available |
Keyword | AC DOB |
N.W | 0.03kg |
PCB Size | D130*2.0 MM |
Description
LED module uses one of the brightest LEDs on the market now.
LED module has excellent design which have graceful appearance and good waterproof function.
LED module are perfect for huge highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications
|
|
