Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 50000 Piece/Pieces per Week AC Led Module |
| Delivery Time : | 5-10 Work days |

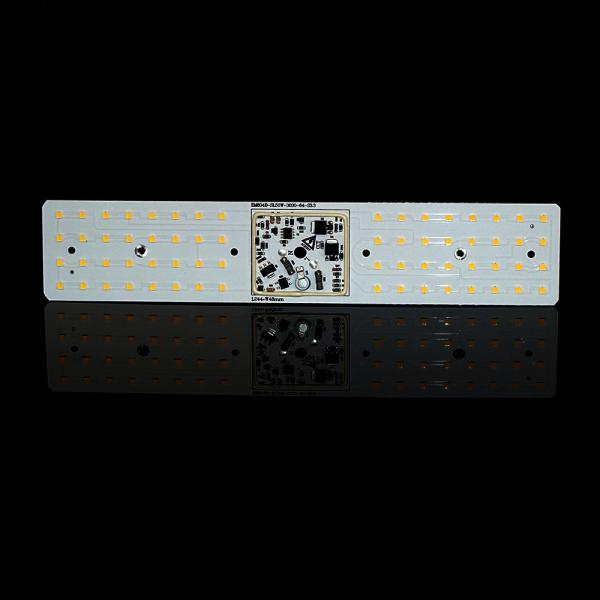

SMD3030 DOB Round 50W LED Module 220V 240VAC For Work Ceiling Light
SMD3030 DOB Round LED Module 50W 220-240VAC for LED Work Light Ceiling Light
150W AC Linear LED Module
Led source: SMD 3030
Rated Watts: 50W
Input Voltage: AC190-270V
PF: 0.98
Surge protector 4KV surge protection on board
Lux(lm/w): 135lm/w±5%
CCT(K): 3000-6000K
Ra: >80
Beam angle: 120°
Material: PCB2.0(high-conductivity)
life span(H): >30,000
Operating temperature: -30℃ ~ 55℃
Size: D230*2.0mm
50W 230V LED Driverless DOB PCB For Floodlight
1. The 20W 30W 50W 100W 200W AC driver can used in highbay light, floodlight, streetlight etc.
2. AC integrated driver with high reliabliliy and PF>0.9.
3. With OVP, OTP, OCP Protection. 4KV surge protection, THD<15%.
4. LED Gold Thread SMD2835 Chip.
5. CE ROHS FCC SAA UL RCM certifications.
6. PCB with high thermal coductive, thickess 2.0mm.
Features of AC LED MODULE:
* AC integrated driver,high reliability, PF>0.98 THD<10
* With OVP,OTP and OCP
* 10KV surge protection external
* Philips or bridgelux SMD 3030,CRI>80
* CCT:2700K,3000K,4000K,5000K,6000K,6500K Options
* Long lifespan:30000 hours ,3 years warranty
* High efficiency,high lumen , 120lm/W
* No UV or infrared Radiation
* OEM,ODM and customers-design
Specification
TYPE | PRODUCT NAME | LENGTH AND WATTAGE | CCT | CRI |
PCB with led | AC LED MODULE | 244X48mm / 50W / 6000LM | 2700-7000K | Ra>80 |
LENS | DK252*70-136*78-TPII-S-76H1 | 252*70*11.5mm /136*780 /600 / 900 | smd 2835 / 3030 | PC |
PRODUCT NAME : AC LED MODULE
ITEM | SPECIFICATION | SLAM-050L244X48-XX W27-30 | SLAM-050L244X48-XX C50-70 |
GENERAL PERFORMANCE | Delivered Lumens(lm) | 5500 | 6000 |
Efficacy(lm/W) | 110 | 120 | |
CRI | 80 | 80 | |
Power Consumption(W) | 50 | 50 | |
Color Temperature(K) | 2700-3000K | 5000-7000K | |
Color Consistency | Proprietary binning for uniform color | ||
Lifetime | 30000 Hrs | ||
ELECTRICAL | Power Factor/THD | PF>0.98 THD<10 | |
Input Voltage | 110V / 220V | ||
PHYSICAL | Operating Temperature | -33℃ ~ 55℃ | |
Tc Max | 90℃ (Tc point marked on engine) | ||
|
|
