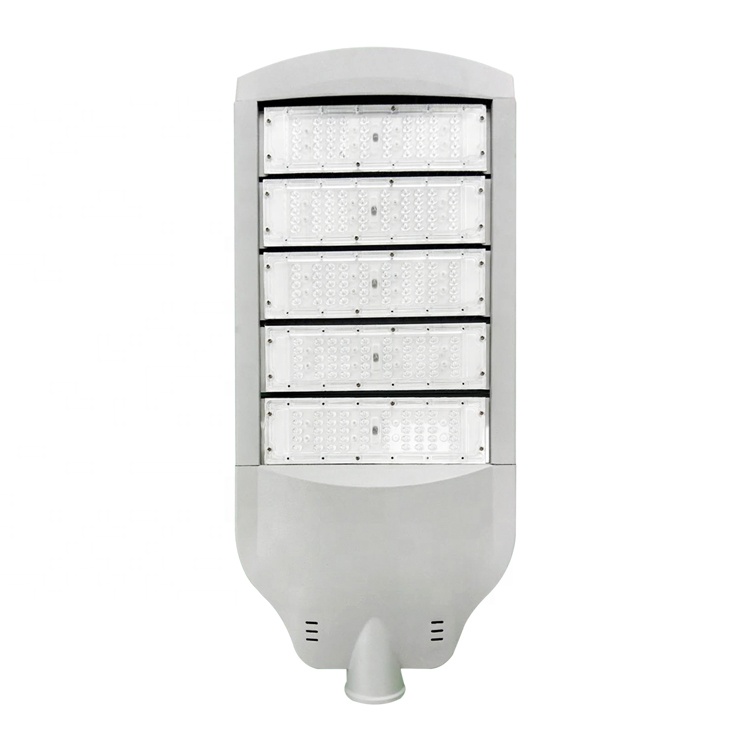

Metal Case 80X150 Degree LED Driver Module 60W 240W Power Supply
240W IP65 Power Supply Metal Case Led Street Light Module With LED Driver Module
Product Description
| Model No. | BV1-001 | BV1-002 | BV1-003 | BV1-004 | BV1-005 |
| Power: | 60W | 100W | 150W | 200W | 240W |
| Nw: | 3.5KG | 3.8KG | 4.2KG | 4.7KG | 5.2KG |
| Size(MM): | 490x325x80 | 490x325x80 | 570x323x80 | 650x323x80 | 730x323x80 |
| Luminous flux: | 130LM/W | 130LM/W | 130LM/W | 130LM/W | 130LM/W |
| Packing(MM): | 500X340X90 | 500X340X90 | 590X340X90 | 670X340X90 | 750X340X90 |
Features:
Application:
ELG-150-12 / ELG-150-24 / ELG-150-36 / ELG-150-42 / ELG-150-48 / ELG-150-54
| MODEL | ELG-150-12 | ELG-150-24 | ELG-150-36 | ELG-150-42 | ELG-150-48 | ELG-150-54 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | 42V | 48V | 54V |
| CONSTANT CURRENT REGION | 6 ~ 12V | 12 ~ 24V | 18 ~ 36V | 21 ~ 42V | 24 ~ 48V | 27 ~ 54V | |
| RATED CURRENT | 10A | 6.25A | 4.17A | 3.57A | 3.13A | 2.8A | |
| RATED POWER | 200VAC ~ 305VAC | ||||||
| 120W | 150W | 150.1W | 150W | 150.2W | 151.2W | ||
| 100VAC ~ 180VAC | |||||||
| 84W | 105W | 105W | 105W | 105W | 105W | ||
| RIPPLE & NOISE | 150mVp-p | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | 350mVp-p | |
| VOLTAGE ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | ||||||
| 10.8 ~ 13.2V | 21.6 ~ 26.4V | 32.4 ~ 39.6V | 37.8 ~ 46.2V | 43.2 ~ 52.8V | 49 ~ 58V | ||
| CURRENT ADJ. RANGE | Adjustable for A-Type only (via the built-in potentiometer) | ||||||
| 5 ~ 10A | 3.2 ~ 6.25A | 2.1 ~ 4.17A | 1.8 ~ 3.57A | 1.56 ~ 3.13A | 1.4 ~ 2.8A | ||
| AUXILIARY POWER | Nominal 15V(deviation 11.5~15.5V), 0.4A (for BE-Type only) | ||||||
| VOLTAGE TOLERANCE | ±3.0% | ±3.0% | ±2.5% | ±2.5% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| AUXILIARY DC OUTPUT | Nominal 15V(deviation 11.5~15.5V)@0.4A for BE-Type only | ||||||
| SETUP, RISE TIME | 1600ms, 80ms/115VAC 500ms, 100ms/230VAC | ||||||
| HOLD UP TIME | 10ms/115VAC, 230VAC | ||||||
| INPUT | VOLTAGE RANGE | 100 ~ 305VAC 142 ~ 431VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF≥0.97/115VAC, PF≥0.95/230VAC, PF≥0.92/277VAC@full load | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load≥50%/115VC; @load≥60%/230VAC; @load≥75%/277VAC) | ||||||
| EFFICIENCY | 88% | 89% | 90% | 90% | 90% | 91% | |
| AC CURRENT | 1.7A / 115VAC 0.9A / 230VAC 0.7A/277VAC | ||||||
| INRUSH CURRENT | COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.75mA / 277VAC | ||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 14 ~ 18V | 28 ~ 34V | 41 ~ 48V | 47 ~ 54V | 54 ~ 62V | 59 ~ 68V | |
| Protection type : Shut down o/p voltage, re-power on to recovery | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recovery | ||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90°C(Refer to "Derating Curve") | |||||
| MAX. CASE TEMP. | Tcase=+90°C | ||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C,10~95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | U8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384;GB19510.1, GB19510.14; IP65 or IP67 approved | |||||
| DALI STANDARDS | Compliance to IEC62386-101, 102, 207 for DA-Type only | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | ||||||
| EMC EMISSION | Compliance to EN55015,EN61000-3-2 Class C (@load≥60%) ; EN61000-3-3; GB17743,GB17625.1 | ||||||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV) | ||||||
| OTHERS | MTBF | 899.8K hrs min. Telcordia SR-332 (Bellcore) 313.66Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 219*63*35.5mm (L*W*H) | ||||||
| PACKING | 0.95Kg ; 16pcs/16.0kg/0.77CUFT | ||||||
|
|
