    Cold White 220V 6500K AC LED Module For Spotlight Bulb Track Light

    Ask Lasest Price
    Brand Name : mankun
    Certification : ce, RoHS
    Price : Negotiation
    Model Number : HB-4159
    Payment Terms : Negotiation
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 5-25 work days
    • Product Details
    • Company Profile

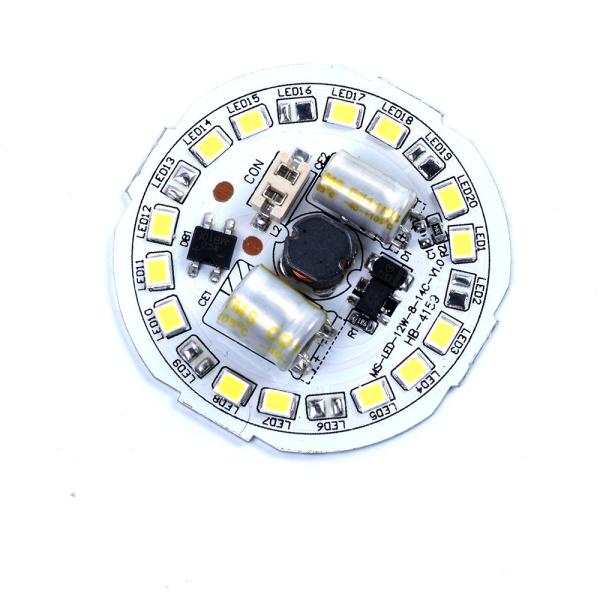

    Cold White 220V 6500K AC LED Module For Spotlight Bulb Track Light

    Cold White 220V 6500K AC LED Module For Spotlight Bulb Track Light


    9W Driverless DOB 220V AC Led Module For Spotlight Bulb Track Light Downlight


    Product details

    Material

    PCB with smd 2835 LED

    Light Color

    2700/3000/4000/5000K

    CRI

    80/90

    Light Output

    990lm @6500K Ra80

    HiPot

    1.5KV AC

    Surge Protection

    1KV Surge

    Certification

    CE,3C

    Power

    220V 50Hz 9W

    Power Factor

    0.95


    Specification

    Item#:

    H4159

    Product name:

    DOB LED module

    Shape:

    Round led module

    LED Types:

    2835 SMD LED

    Voltage:

    AC 230V

    Color:

    White

    LED Chip:

    Seoul & Samsung

    Input Current

    230mA

    Dimension:

    Diameter is 45mm

    PCB Material:

    Aluminum

    LED QTY:

    10pcs

    Luminous Efficacy:

    120Lm/W

    Operating temperature:

    -40℃~50℃

    Input Wattage

    9W

    Color Temperature(CCT):

    2700K, 3000K, 3500K, 4000K, 5000K, 6500K

    Certification:

    UL,CE,ROSH

    Warranty(Year):

    2 Years

    Applications:

    Linear Fixture, Commercial Lighting, Super market, Office, Hospital, School, Garage, etc.



    FEATURES OF DOB CONSTANT CURRENT LIGHTING SOLUTION

    ● Over-voltage & over-current protection. With five-channel constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±5% fluctuation range to protect the module from over-voltage and over-current.
    ● Over-temperature protection design. When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.
    ● Customized design and manufacturing is acceptable.
