Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | MANKUN |
| Model Number : | AL20355 |
| Certification : | UL,CE,ROSH |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 100000 Piece/Pieces per Month |
| Delivery Time : | 5-25 work days |

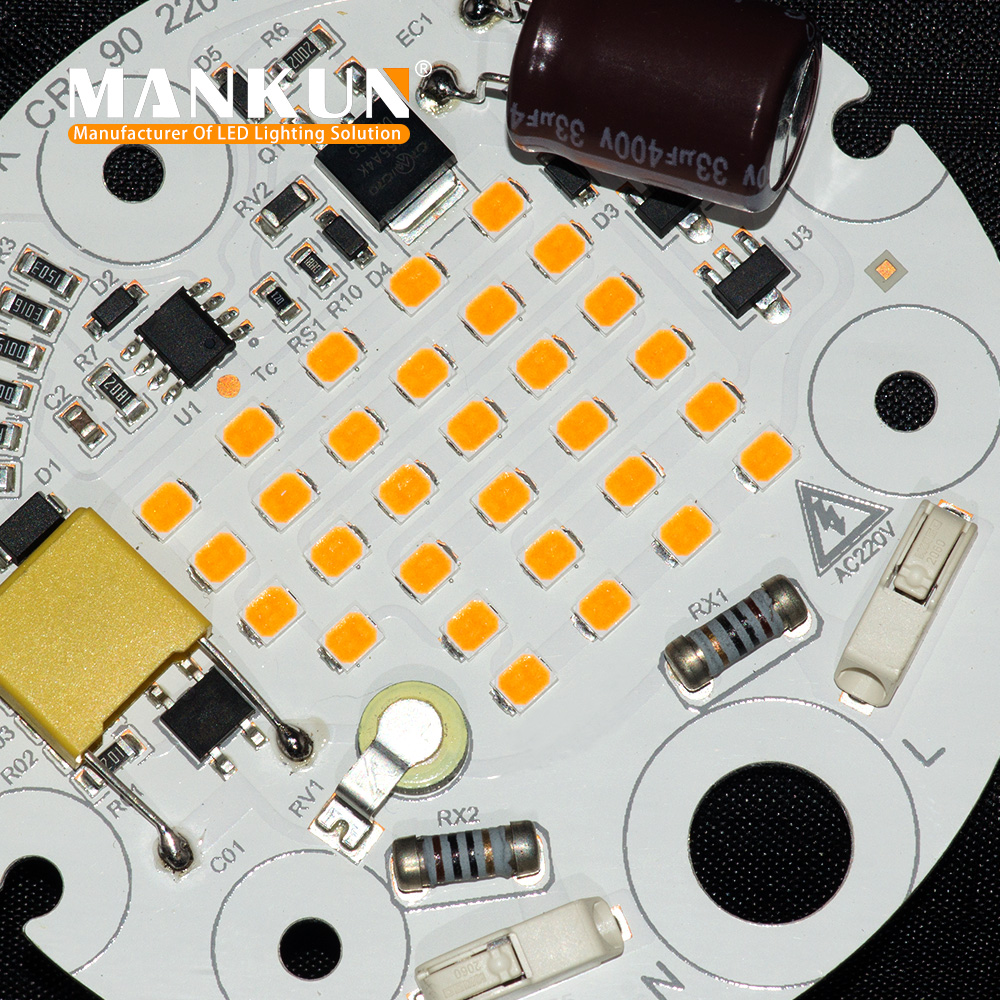

DOB AC220V LED Module SMD2835 2700K CRI90 TRIAC Dimmer PCBA board
Product Description
Model | MK-AL20355 |
LED CHIP | SMD2835 9V 1W |
Dense array of 30 LED | led indoor light |
Work temperature | -40-120 degree |
PCB size | 75*75*1.6mm |
Delivery time | 5-7 work days for 1-5000 pcs |
PRODUCT NAME : AC LED MODULE
| ITEM | SPECIFICATION | 75*75mm |
| GENERAL PERFORMANCE | Delivered Lumens(lm) | 1200Lm |
| Efficacy(lm/W) | 103Lm/w | |
| CRI | >90.0 | |
| Power Consumption(W) | 6.3W | |
| Color Temperature(K) | 2700K | |
| Color Consistency | Proprietary binning for uniform color | |
| Lifetime | 30000 Hrs | |
| ELECTRICAL | Power Factor/THD | PF>0.90 THD<10 |
| Input Voltage | AC220V | |
| PHYSICAL | Operating Temperature | -30℃ ~ 55℃ |
| Tc Max | 90℃ (Tc point marked on engine) |
Product Featured In
1. Linear photoelectric integrated design, High PF, Non-Flicker, Triac dimming.
2.Over-voltage & over-current protection.
With optimized constant power IC design, when input voltage varies between AC 220 and 240V, the IC maintains constant power output within ±10% fluctuation range to protect the module from over-voltage and over-current.
3.Over-temperature protection design.
When the PCB rises up to a very high temperature after running for some time, the patented technology IC will automatically reduce the output current to control the temperature rising of the PCB.
4.High quality PCT 2835 LED with high color rendering index. Ra > 90. No concern in ultraviolet ray or electromagnetic radiation.
|
|
