Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Certification : | ce, RoHS |
| Price : | |
| Delivery Time : | 5-10 work days |
High Lumen 15W 24PCS Indoor LED Module Rigid Strip White SMD3030
LED Sign High Lumen Rigid Strip 3030 Smd Led For Indoor Led Linear Module
Product description
Ideal for linear and panel lights
2 terminals for serial wiring
Perfectly uniform light, even if several LED modules are used together in a line
Push terminals for quick and simple wiring of LED module to LED module
Broad portfolio from extruded lenses and covers available
Long lifetime: 60,000 hours
3- years guarantee
Optical properties for biologically effective lighting
Colour temperature 4,000 K
Useful luminous flux 1,080 lm (20 x 280 mm) and 2,160 lm (20 x 560 mm) at Irated and tp = 25 °C
Efficacy of the LED module 150 lm/W at Irated and tp = 25 °C
Melanopic ratio MEER 0.91
High colour consistency (MacAdam 5)
Small luminous flux tolerances
Mechanical properties
Module dimension 20 x 280 mm and 20 x 560 mm (ZHAGA compliant)
Simple installation via clips or screws
Performance characteristics: |
Linear LED modules for application in linear and area lighting. |
Combinable modules for an optimal,extensive design.Perfect light uniformity. |
Ideal for residential,office,retail and industrial lighting. |
Extended lifetime >60.000h. |
Ta -250C...+550C, Tc 850C, Tp 750C. |
With a high lumen of up to 140lm/W. |
Small tolerance in color temperature of 3MacAdam(3 SDCM). |
CRI > 80 for use in all common applications. |
Easy electrical connection via push-in terminals with release option. |
Easy installation by means of screw fastening. |
It can reach the standard of SELV and non-SELV applications. |
Matrix-topology to avoid bigger dark zones in case of single LED failures. |
Gap distances is designed for voltages max.250 VDC. |
Specific technical data
CRI | CCT K | Current mA | Flux Tc 250C lm | Flux Tc 650C LM | Power Tc 650C W | Efficacy Tc 250C lm/W | Efficacy Tc 650C lm/W | lpk mA | Vmin. Tc 250C @lmin | Vmax. Tc 250C @lmax |
80 | 3000 | 300 | 2912 | 2868 | 22.4 | 130 | 128 | 800 | 72 | 74.4 |
390 | 3638 | 3580 | 29.1 | 125 | 123 | |||||
450 | 4054 | 4020 | 33.5 | 121 | 120 | |||||
4000 | 300 | 3136 | 3114 | 22.4 | 140 | 139 | ||||
390 | 4016 | 3929 | 29.1 | 138 | 135 | |||||
450 | 4489 | 4355 | 33.5 | 134 | 130 | |||||
5000 | 300 | 3136 | 3114 | 22.4 | 140 | 139 | ||||
390 | 4016 | 3929 | 29.1 | 138 | 135 | |||||
450 | 4489 | 4355 | 33.5 | 134 | 130 | |||||
The mentioned data can have a 10% tolerance. | ||||||||||

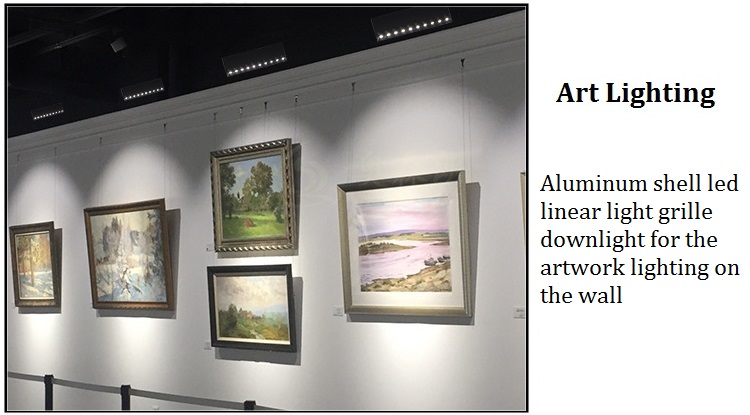

Led grille light uses cob chip 3030, linear lights can be connected with seamless, form with line shape.
|
|
