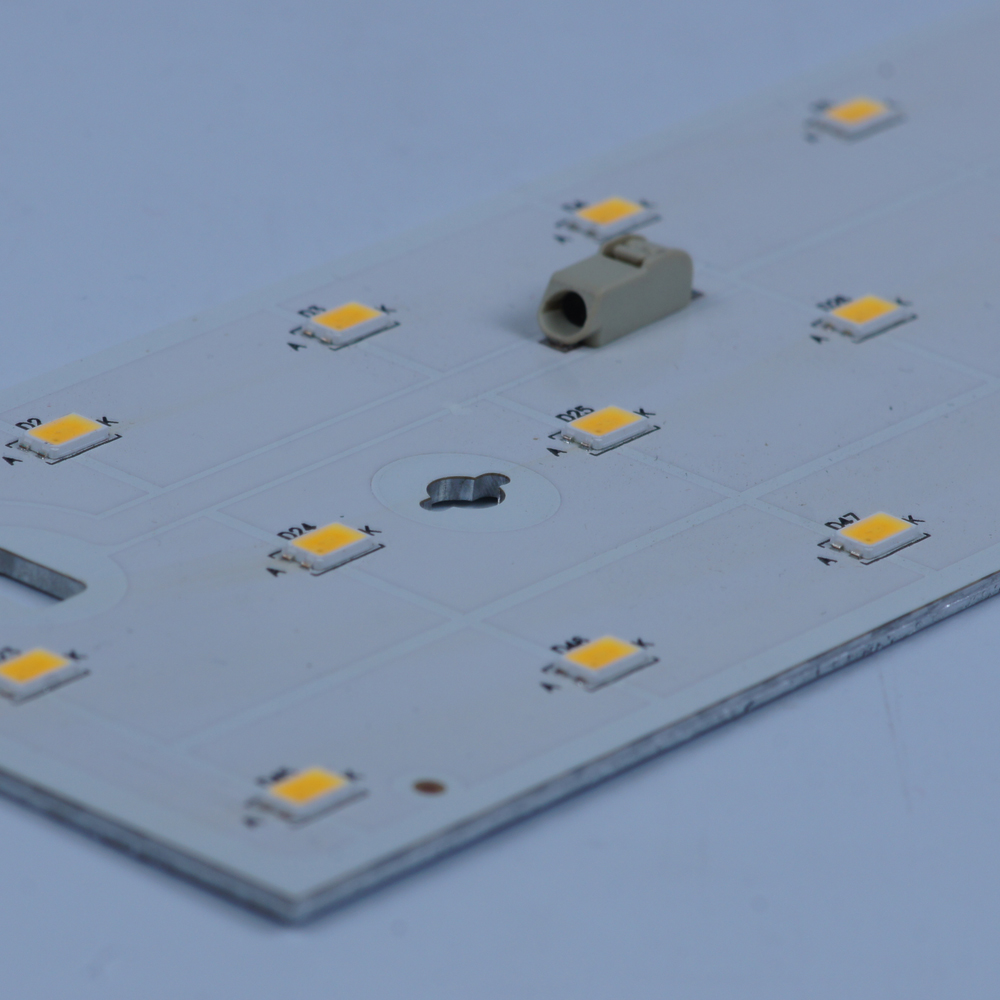

​55*565mm 3R 2F SMD5630 PCB LED Module For Indoor Linear Light

55*565mm 3R Pcb With Smd5630 Zhaga 2F Indoor Light Modules Led Linear Module

Download CAD files

Download Specific technical data

Main characteristics:

Environmental requirements:

• Working temperature: -20~40 ℃

• Storage temperature: -20~80 ℃

• Working humidity: 30%~85%

• Storage humidity: 10%~90%

Applications:

• Energy saving programs

• Sustainable energy

• High-class stores, shopping malls

• Hotel, entertainment place

• Meeting room, multi-function hall

• Exhibition, fashionable dress act lighting

• Saloon, coffee house, photography area

• Living room lighting, commercial lighting

• Museum lighting

• Architectural lighting

Optical properties

• Linear Tunable White LED module with 2,700 and 6,500 K SMT packages

• Useful luminous flux 4500 lm at Irated and tp = 25 °C

• Efficacy of the LED module 169 lm/W at Irated and tp = 25 °C

• High colour rendering index CRI > 90

• Small colour tolerance (MacAdam 5)

• Low tolerances for luminous flux

• Module dimension 55 x 565 mm (ZHAGA compliant)

Approval marks:

MANKUN electronics co., ltd. was founded in August 2005, is a collection of LED lighting PCB circuit board research and development, production, and sales in one of the highly Modern enterprises with new technology. Has a number of imported automatic production lines, a strict management system, and excellent technology research and development and management talent, and in February 2008 established Taiwan Mankun electronics co., LTD.

Professional PCB PCB is engaged in the production of the single and double aluminum substrate, copper substrate, FR4 fiberboard, multilayer PCB, and flflexible PCB. A complete set of imported advanced circuit board production equipment and electronic mounting equipment. The products are mainly used in LED lighting (LED commercial lighting, LED indoor and outdoor lighting, LED industrial lighting, LED vehicle lighting) electronics, machinery, communications, medical and other areas with high heat dissipation requirements; The company has passed UL certifification (certifificate number: E334090) excellent quality circuit board manufacturers.

Our company is the honoree of the " the quality first, keep improving" policy, with strong research and development capacity, and a number of patents to lay a solid foundation. Our products are widely exported to America, Russia, South Korea, other countries, and so on. Our company adheres to the Customer-oriented, with the best quality, best efficiency, and best service, to create the highest value for customers at home and abroad.
