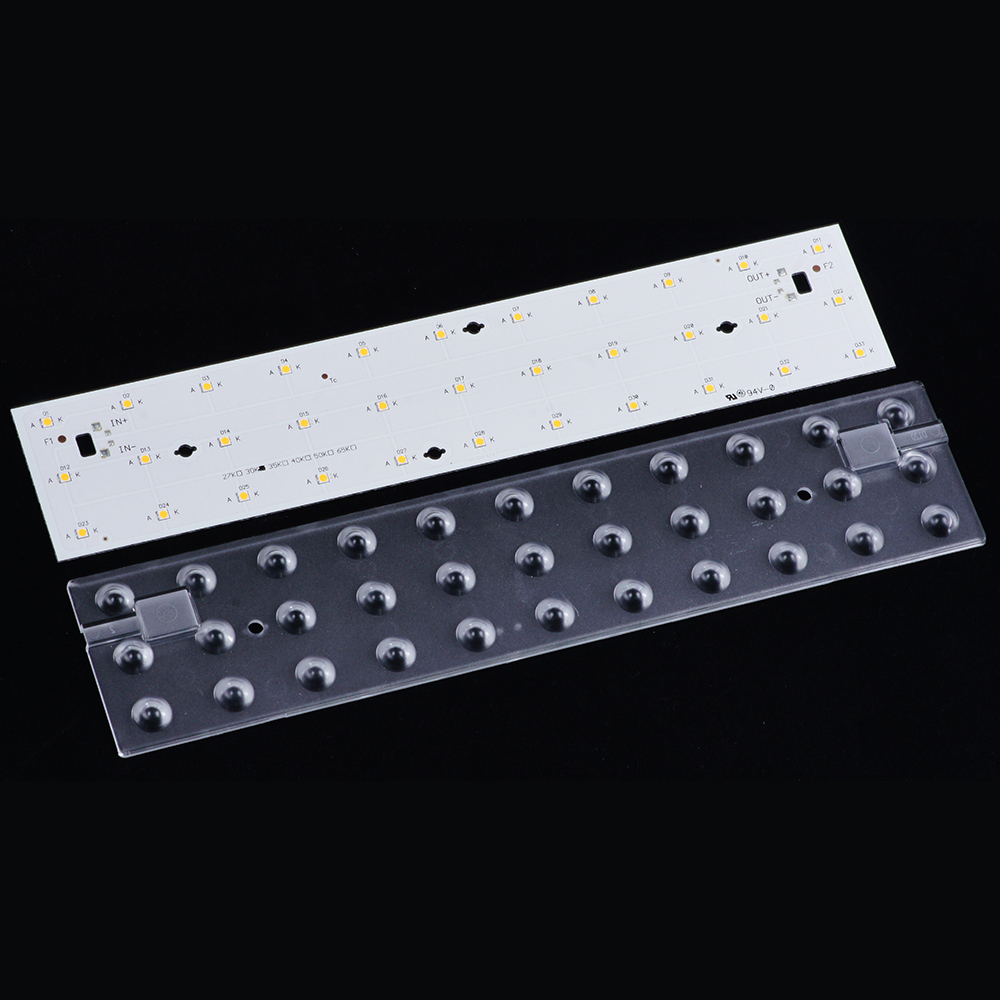

DC66V 33PCS 20W LED Module Precision Line Rail 55*280mm PCB
55*280mm Pcb 33leds Module Light Modules Precision Line Rail Led Linear Module
Product description
High efficiency outdoor modules
Suitable for harsh and humid outdoor conditions
Colour temperatures 2,200K, 2,700 K, 3,000 K, 4,000 K, 5,000 K and 6,500 K
Useful luminous flux 4,400 lm at Irated and tp = 25 °C
Efficacy of the LED module 180 lm/W at Irated and tp = 25 °C
High colour rendering index CRI > 80
Huge performance temperature range from -40 ... +95 °C
Surge tested (+/- to earth) 6 kV with Tridonic LED driver

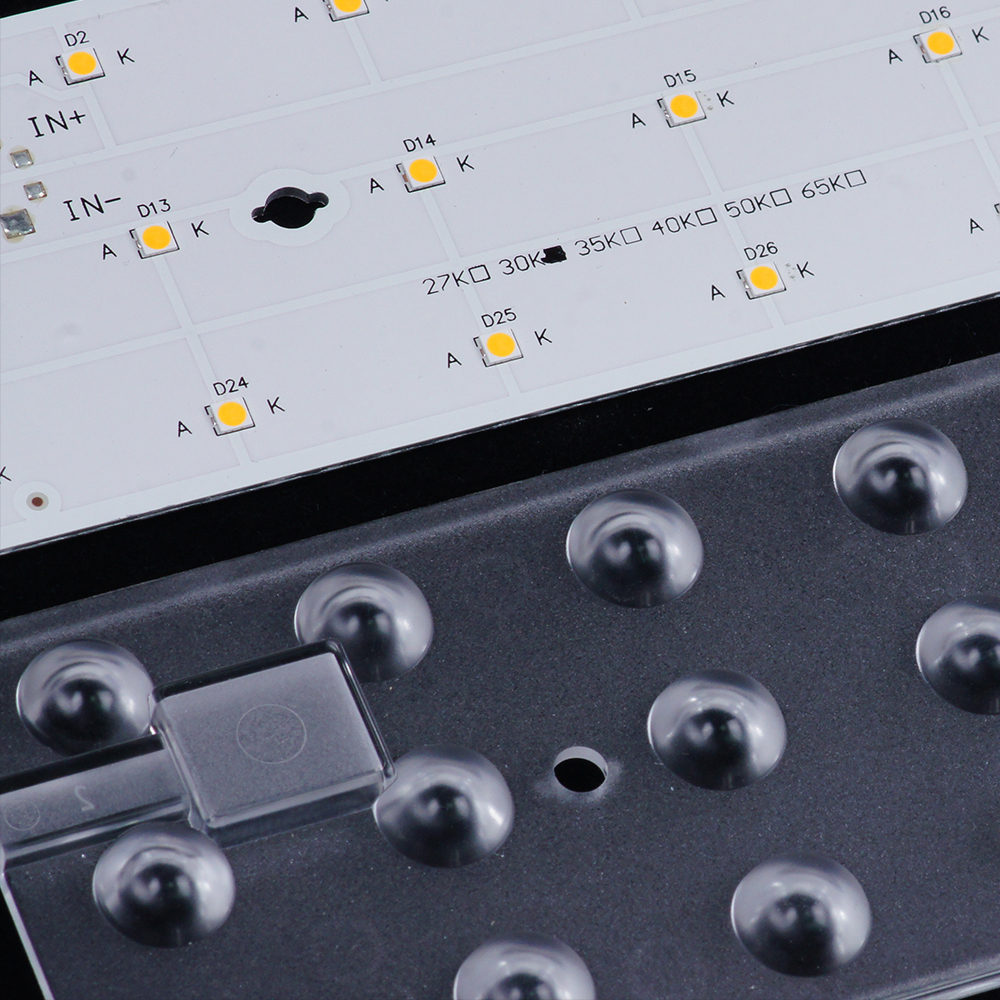

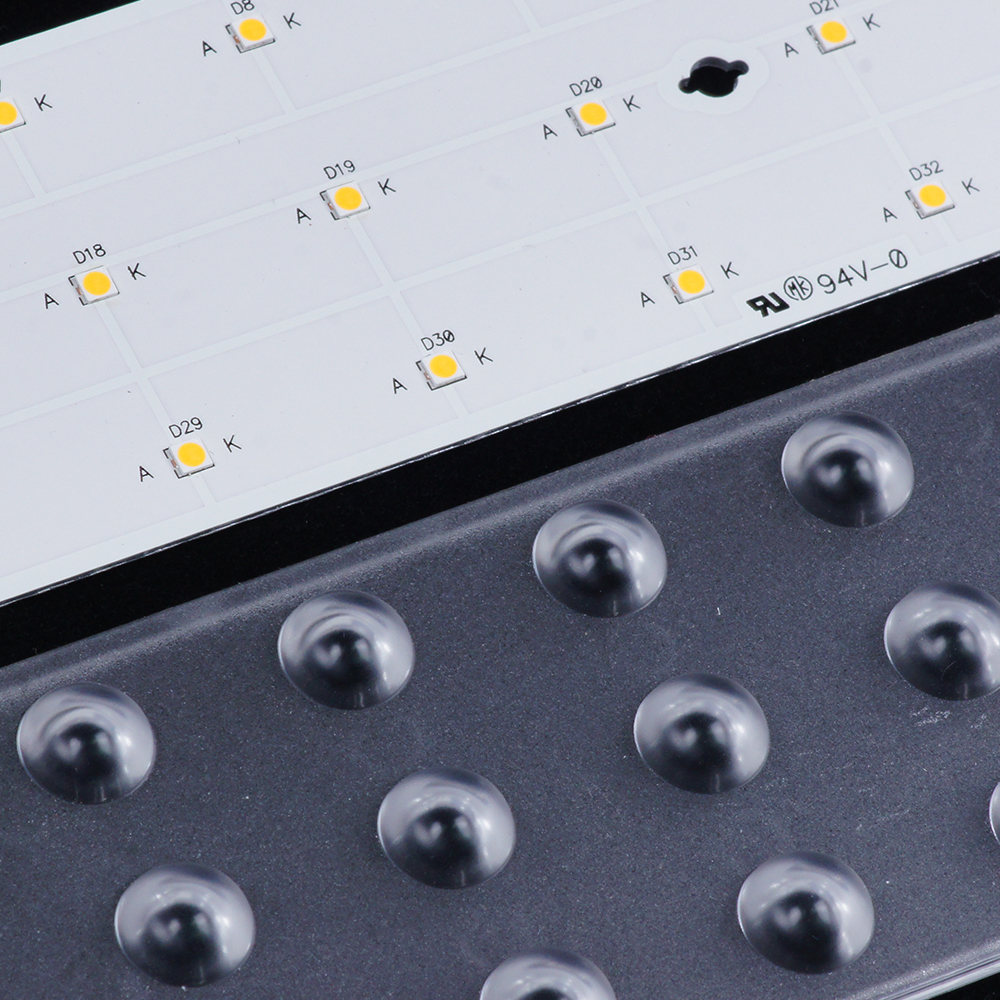

For use with 33H1 lenses
Push-in terminals for simple and quick wiring
Module dimension 49.5 x 121.4 mm and 49.5 x 223 mm
Long lifetime up to 60,000 hours
5 years
Specification
Measurement: | |
Product name | LED Linear Light |
Product Model No | AL15860 |
Pcb Size | L280*W55*H6mm |
Cuting size | L1500*W60*H60mm |
System Power Consumption | 60w |
CCT | 3000K,4000K,6000K |
LEDs | 2835SMD 240PCS |
LEDs Life Span | 50000H |
Input Voltage | AC 180~ 264v / AC100~277V 50/60Hz |
Luminous Efficacy(lm/w) | 100lm/W |
Color Render (CRI) | RA≥80 or RA≥90 |
Power factory(PF) | ≥0.9 |
IP Rated | IP20 |
Beam Angle | 120° (Degree Beam Angle) |
Working Temp(℃) | Surrounding Ambiance Temperature -25°~40°Degree Celsius |
Body Material | aluminum,PC,ABS |
Color Option(shell) | Silver,White,Black |
Certification | CE, RoHS |
Limited Warranty | 3 Years |
Specific technical data
CRI | CCT K | Current mA | Flux Tc 250C lm | Flux Tc 650C LM | Power Tc 650C W | Efficacy Tc 250C lm/W | Efficacy Tc 650C lm/W | lpk mA | Vmin. Tc 250C @lmin | Vmax. Tc 250C @lmax |
80 | 3000 | 300 | 2574 | 2535 | 19.8 | 130 | 128 | 720 | 63.8 | 66 |
390 | 3225 | 3174 | 25.8 | 125 | 123 | |||||
450 | 3594 | 3564 | 29.7 | 121 | 120 | |||||
4000 | 300 | 2772 | 2753 | 19.8 | 140 | 139 | ||||
390 | 3561 | 3483 | 25.8 | 138 | 135 | |||||
450 | 3980 | 3861 | 29.7 | 134 | 130 | |||||
5000 | 300 | 2772 | 2753 | 19.8 | 140 | 139 | ||||
390 | 3561 | 3483 | 25.8 | 138 | 135 | |||||
450 | 3980 | 3861 | 29.7 | 134 | 130 | |||||
The mentioned data can have a 10% tolerance. | ||||||||||
