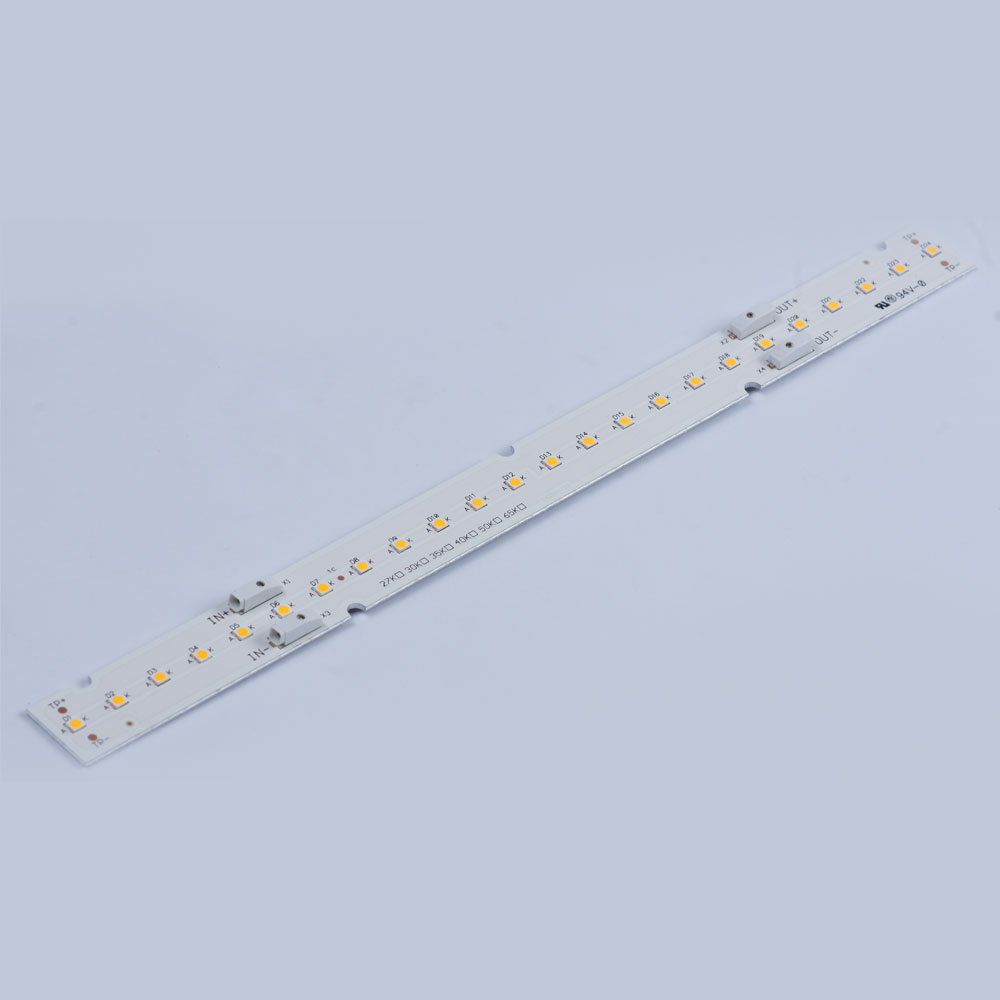

    150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications

    Ask Lasest Price
    Brand Name : mankun
    Certification : ce, RoHS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 20000 Piece/Pieces per Day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    150LM SMD3030 20 Watt LED Module Strip CE RoHS FCC Certifications

    150LM SMD 3030 20 Watt LED Module Strip CE RoHS FCC Certifications


    150LM Smd3030 20 Watt Indoor Lighting Linear LED Module CRI > 80Ra


    Features and benefits:

    • Ideal for linear and panel lights

    • Optional PH2.0 or 2060 Terminal Block

    • Quite easy to connect and remove the conductors.

    • Perfectly uniform light, even if several LED modules are used together

    • Designed for variety of general lighting applications with high efficiency level, surpassing T5

    • High color redering index >80

    • High system efficacy up to 158 lm/w

    • Long life-time of 50,000 h and 3-year system guarantee

    • CE RoHS FCC certifications


    Application & Electrical specs

    • LED Chip: SMD2835 / 5730 , 60 Lm/LED

    • LED Power: Max 150mA/LED; 0.5W/LED

    • Colors: CW5800~6250K, WW2800~3200K, NW3800~4250K

    • Waterproof Rating: IP20

    • Size: 560mm length, 20mm width

    • Type: 24/48LEDs, 11/17W, 1320/2180 lm

    • Operating Temperature: -40~50 °C (PCB /Tc < 75 °C)

    • Input voltage: DC22~25V

    • Life-Span: >50000hours Tc< 75 °C, I<150mA /LED



    Product details




    CRI

    CCT K

    Current mA

    Flux Tc 250C lm

    Flux Tc 650C LM

    Power Tc 650C W

    Efficacy Tc 250C lm/W

    Efficacy Tc 650C lm/W

    lpk mA

    Vmin. Tc 250C @lmin

    Vmax. Tc 250C @lmax

    80

    3000

    300

    2912

    2868

    22.4

    130

    128

    800

    72

    74.4

    390

    3638

    3580

    29.1

    125

    123

    450

    4054

    4020

    33.5

    121

    120

    4000

    300

    3136

    3114

    22.4

    140

    139

    390

    4016

    3929

    29.1

    138

    135

    450

    4489

    4355

    33.5

    134

    130

    5000

    300

    3136

    3114

    22.4

    140

    139

    390

    4016

    3929

    29.1

    138

    135

    450

    4489

    4355

    33.5

    134

    130

    The mentioned data can have a 10% tolerance.
