Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | ManKun |
| Model Number : | 17905 |
| Certification : | ROHS UL |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 10000 SET /Month |
| Delivery Time : | 10-15 work days |
Street Light Led Pcb Module 50w SMD3030 64D Street Light Led PCB Module
| PCB Board Specification | |
| Model No. | DK236-64D-17905 |
| Input Voltage | DC48V |
| Input Current | 1200mA |
| Product Finish | Silver |
| Power | 50W |
| Luminouse Flux | 7500LM |
| LED Chip | 3030 (64Pcs) |
| Beam Angle | 120 |
| Color Option | warm white/Natural White/ Cool white |
| CRI | Ra>70 |
| Work Environment | Temperature:-40℃-50℃ |
| Humidity:10%-95% | |
| PCB size | 220*36*1.6mm |
| Lifespan | >50,000Hours |
| Heat Sink Material | Aviation aluminum |
PCB Board Specification

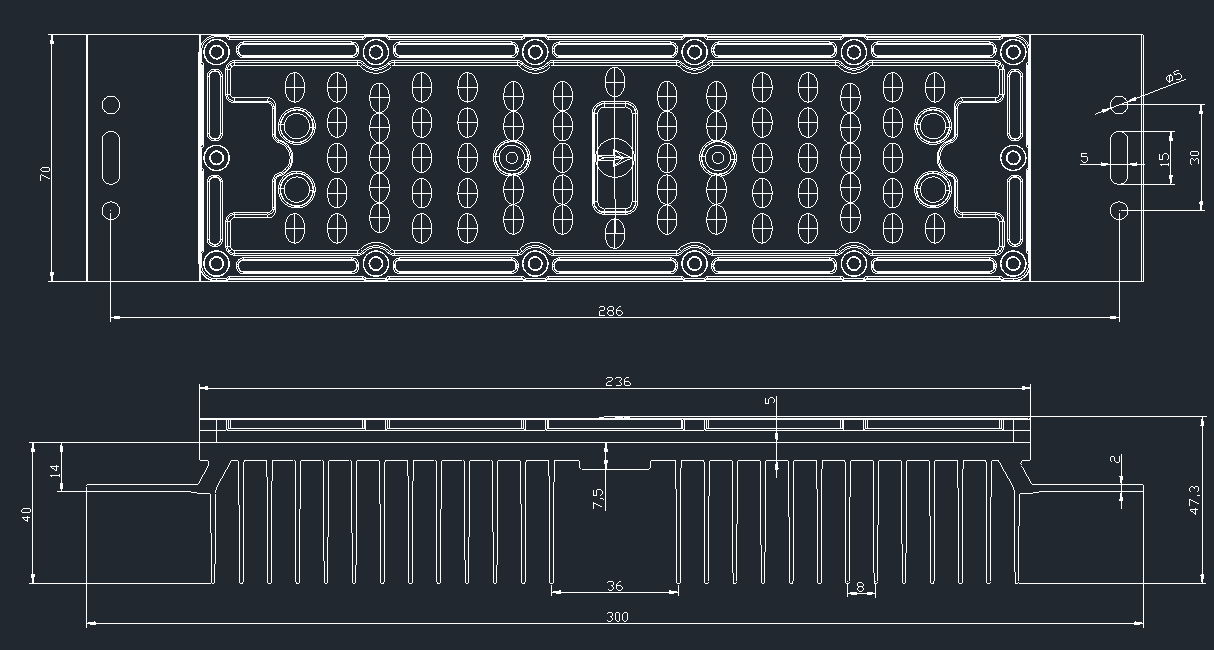

1) Type | Lens For Floodlight/Streetlight Lens 3030/Waterproof Led Lens |
2) Model No. | DK-236x70-80x150-TP-64H1 |
3) Size | 236*70*11.4MM |
4)Beam Angle | 80x150° |
5)LED Series | 3030 |
6)Material | Optical grade PMMA |
7)Temperature Resistance | -35℃~+120 ℃ |
8)Lead Time | 3-7 days for sample order,7-15 days for mass product |
9)Application | Spotlight, down light, track light etc. |
Advantage:
1) High energy-saving: module luminous efficiency 130-160lm/W, exceeding 50% of ordinary LED light
2) Environmental protection: No harmful substances that affect the environment such as lead and mercury, and no radiation harmful to human health such as ultraviolet rays and infrared rays, and no light pollution to the surrounding environment.
3) Long service life: The server life is 5-8 times that of traditional lamps of the same type, saving maintenance costs.
4) Efficient and stable: no start-up delay, constant current drive, no influence from grid fluctuations, no flicker.
5) Easy to install and disassemble: just fix the lamp body on the lamp body at the installation position, and remove the module by loosening the screws during maintenance.
6) High safety: The external voltage of the module is a safe voltage, which effectively prevents the risk of electric shock leakage.
7) High-performance light distribution scheme: The use of ultra-high-order free-form surfaces for uniform brightness led light lenses further enhances brightness and illuminance uniformity and geometric utilization under the premise of meeting the light distribution requirements of road lighting design standards.
8) The module can be plug-in and plug-in design, easy maintenance, assembly, spare parts, and convenient stocking.
Street lamp application scenario:
|
|
