Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Model Number : | 18384 |
| Payment Terms : | Negotiation |
| Supply Ability : | 200,000 PCs per month |
| Delivery Time : | 5-10 work days |

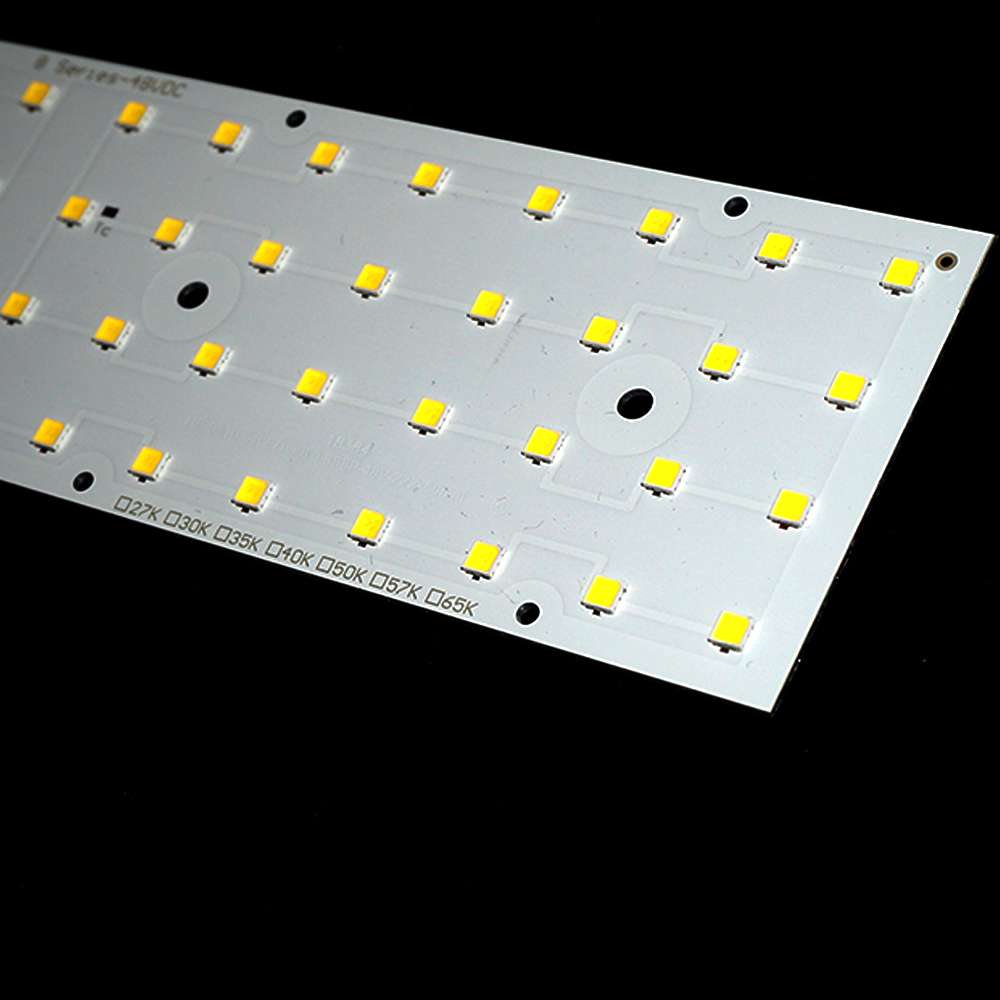

ZHAGA 222X50 pcb with led smd3030 50Wstreetlight smart board pcb led module
Key features and benefits
• Best efficiency for fixture performance
• Enabled OEM optical differentiation with lenses from third party portfolios matching every project’s needs
• Best in class reliability testing for OEM peace of mind
• Wide operating thermal range
• Temperature and driving current designed for fixture optimization
• Patented module surge protection
• Flexible lumen output
• Instant full light
• Zhaga book 15 compatible
Applications
• High bay lighting
• Flood and Area lighting
• Urban street lighting
• Road lighting
NO. | Name | Nominal Value |
1 | Type | MK18384-50W |
2 | Power | 50W |
3 | CCT | 3000K |
4 | LED Angle | 120 |
5 | Brand of chips | Bridgelux |
6 | LED Qty's | SMD 3030 64pcs |
7 | CRI | >70 |
8 | Luminous Efficiency | 140Lm/W |
9 | Luminous Flux | 9000Lm |
10 | IP Rate | |
11 | Input Voltage | 48V |
12 | Input Current | 1500mA |
13 | Working Environment | -400C - 500C, 20%-90%H.R |
14 | Storage Temperature | -400C - 850C, 10%-90%H.R |
15 | Life time | > 5years |
16 | Body material | Aluminum+ Optical PC |
17 | Size of Lamp | 223*49*6 mm ( + - 5mm) |
Reliability is a result of knowledge, consistency and expertise
To give customers, lighting professionals in the field and partner manufacturers the confidence that they have access to the highest quality products and lighting, a reliability program can help to span the full lifecycle of lighting components, from product design and testing to installation and maintenance.
|
|
