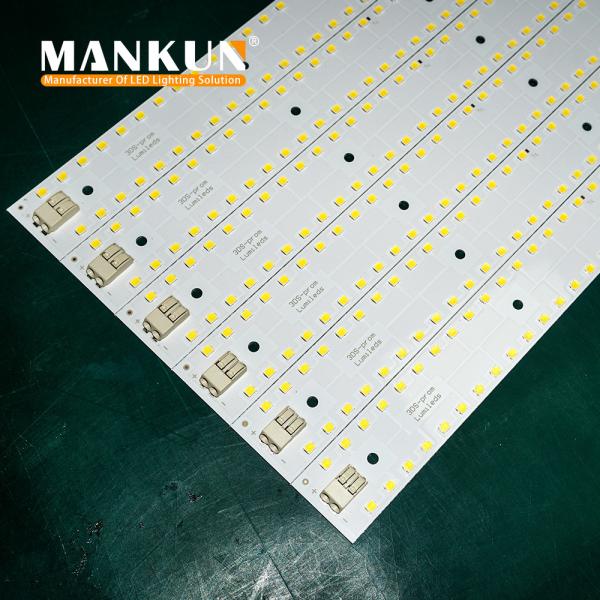

SMD 2835 92LEDs 4000K CCT 20W Linear LED Module For Indoor Led Module
Specification of Indoor LED module
| Power: | 20W |
| PCB Size: | 395*25*1.6mm |
| LED: | 92pcs LumiLEDs LED 2835 |
| CRI: | ≥85±5Ra |
| Lumen efficiency: | 150 lm/w |
| Lumen output: | 3000 lm |
| Lumen depreciation: | 5 |
| CCT: | 3000K/4000K/6000K |
| Voltage: | 128-138V |
| PCB Material: | Aluminum |
| Bean angle: | 120° |
| Package: | blister package |
| Certificate: | CE, RoHS |
| Application: | Replace grille lamp resource,architectural deroction |
Features of Indoor LED module
Customize for your own lighting various size OEM are available
1. AC and DC led light module , without external driver.
2. Free combination to different wattage and size(shape)
3. Ideal for retrofit and decoration engineerings,can be assembled
into different shape at will.
4. LumiLEDs 2835 LEDs, CRI>85 Ra, 150lm/w
5.1F, 2F different size according to zhaga standard.
6. Huge market-grille lamp replacement/decoration engineering or
projects
Applications of Indoor LED module
Remarks of Indoor LED module
• Switch off power supply BEFORE COMMENCING WORK
• Avoid touching live parts
• Do not use damaged LED Strips
• Luminaire must be earthed.
• Do not touch, connect or disconnect the LED Strip or wiring in a
live system
|
|
