    High Efficiency 16PCS PCB LED Module Custom Made Standard 223x49mm

    High Efficiency 16PCS PCB LED Module Custom Made Standard 223x49mm

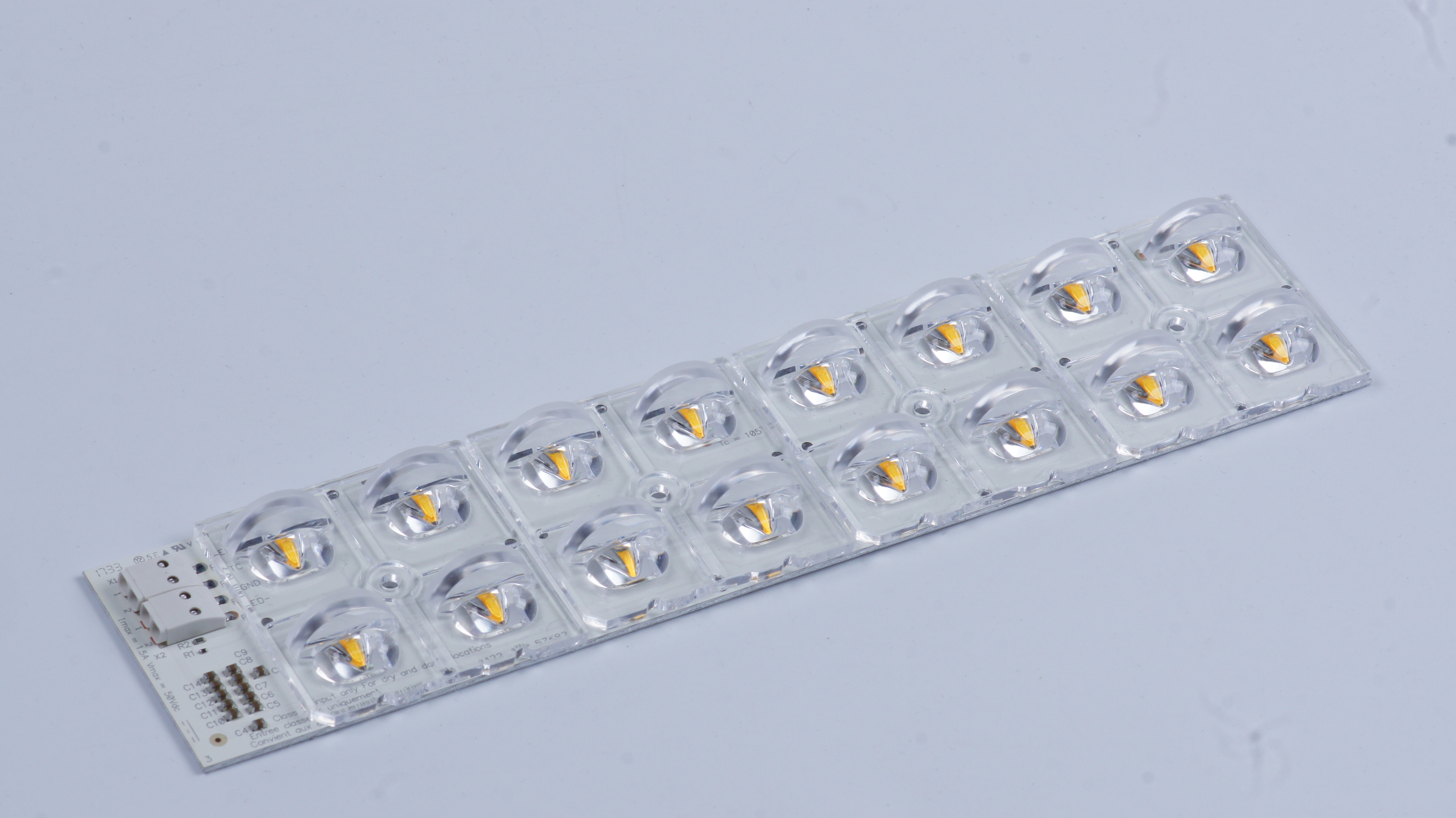

    223x49mm Standard ZHAGA PCBA Custom-Made 16 PCS 3535 SMD Led PCB Module


    Product description


    • High efficiency outdoor modules
    • Colour temperatures 3,000 K, 4,000 K, 5,000 K, 5,700 K and 6,500 K
    • Useful luminous flux 4,550 lm at Irated and tp = 25 °C
    • Efficacy of the LED module 160 lm/W at Irated and tp = 25 °C
    • Two colour rendering index to fit the application: CRI > 70 high efficency, CRI > 80 for high colour rendering
    • Suitable for harsh and humid outdoor conditions
    • Huge performance temperature range from -40 ... +105 °C
    • Surge tested (+/- to earth) 6 kV with MW LED driver
    • Integrated NTC for overtemperature protection
    • Zhaga Book 15 compliant
    • For use with standard 2x2 lenses (e.g. LEDiL Strada 2x2)
    • Push-in terminals for simple and quick wiring
    • Module dimension 49.5 x 223 mm
    • Installation of the module together with lens in the luminaire by means of an M3 screw
    • Long lifetime up to 80,000 hours
    Technical data
    Beam characteristic120°
    Ambient temperature range-40 ... +80 °C
    tp rated75 °C
    tc105 °C
    Irated650 mA
    Imax1,200 mA
    Max. permissible LF current ripple1,320 mA
    Max. permissible peak current2,000 mA / max. 10 ms
    Max. working voltage for insulation370 V
    Max. working voltage for insulation with lens670 V
    Insulation test voltage1.74 kV
    CTI of the printed circuit board> 600
    ESD classificationSeverity level 4
    Risk group (IEC 62471)RG2 (Ethr = 684 lx, RG1 at d ≥ 48 cm)
    Classification acc. to IEC 62031Built-in
    Type of protectionIP00
    Lumen maintenance L70B5080,000 h
    Guarantee3+5 Year(s)

    Specific technical data

    Typ. luminous flux at tp = 25 °CTyp. luminous flux at tp = 65 °CTyp. Colour temperature (CCT)Colour rendering index CRIMin. forward voltage at tp = 65 °CMax. forward voltage at tp = 25 °CTyp. forward currentTyp. power consumption at tp = 65 °CEfficacy of the module at tp = 25 °CEfficacy of the module at tp = 65 °C
    2,144 lm2,024 lm827/579> 8021.5 V24.0 V650 mA14.97 W143 lm/W139 lm/W
    2,354 lm2,224 lm830/579> 8021.5 V24.0 V650 mA14.97 W157 lm/W153 lm/W
    2,435 lm2,295 lm840/579> 8021.5 V24.0 V650 mA14.97 W163 lm/W158 lm/W
    2,460 lm2,320 lm850/579> 8021.5 V24.0 V650 mA14.97 W164 lm/W159 lm/W
    1,802 lm1,742 lm722/579> 7021.2 V23.9 V550 mA12.60 W143 lm/W142 lm/W
    2,124 lm2,054 lm730/579> 7021.2 V23.9 V550 mA12.57 W169 lm/W167 lm/W
    2,270 lm2,190 lm740/579> 7021.2 V23.9 V550 mA12.57 W181 lm/W180 lm/W
    2,270 lm2,190 lm765/579> 7021.2 V23.9 V550 mA12.60 W181 lm/W179 lm/W

    Specification
