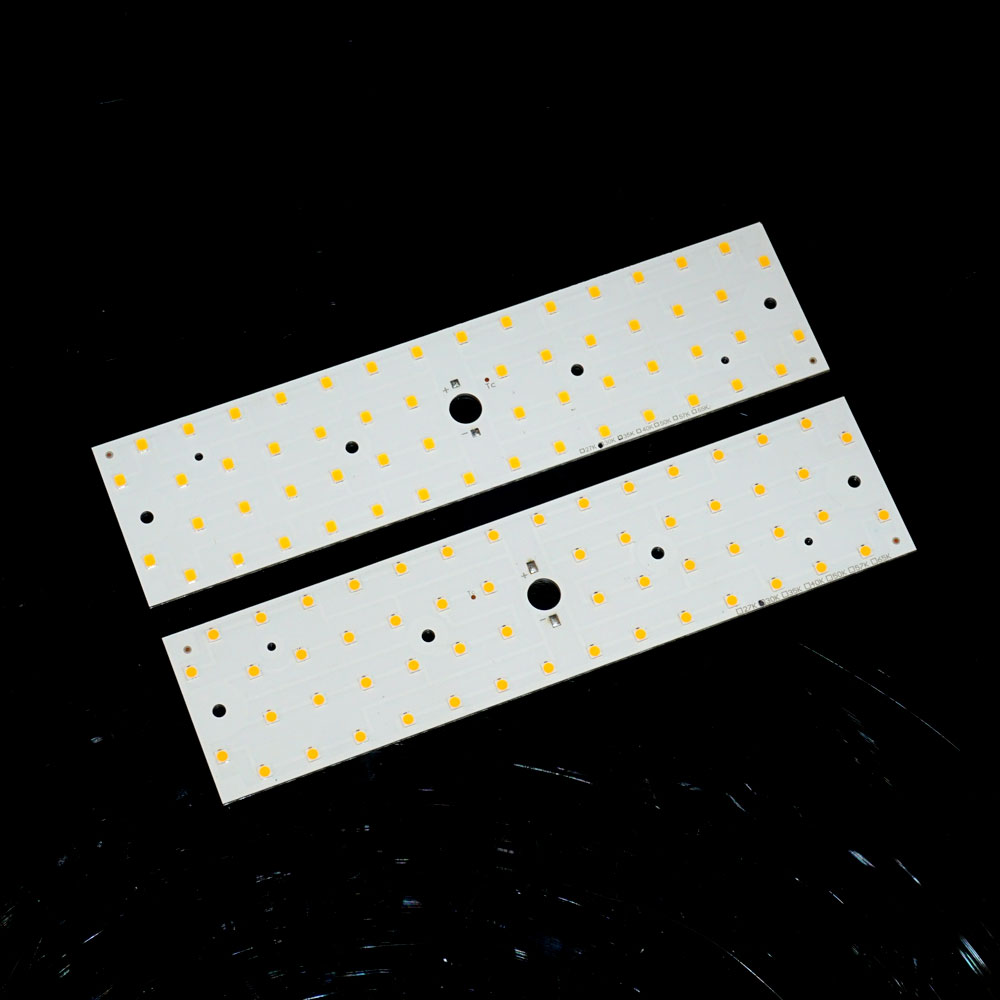

High Efficacy 150lm PCB LED Module 56Pcs SMD3030 Chip Cold White
50W 150lm/Watt LED Pcb Module 3030 56LEDs Module Outdoor Streetlight
Product description
Product Information | |
LENS Module No | DK252-236*70-143*50-TP-I-S-56H1 |
Lens Angle | 143*50 degree VERTICAL |
Lens Size | 236x70 mm |
PCB Size | 190*44mm |
PCB Circuit | 7 series 8 parallel |
Match led | 3030 leds 56PCS |
Kits | led lens+silicon gasket+pcb+leds |
Features:
1) Super-high lighting efficiency
2) Double-coupling IP67 protection, higher waterproof level;
3) 30W, 40W, 50W etc. power rates for choices;
4) >50,000hrs super long life, 5 years warranty;
5) CE, RoHS etc. certificated.
Main parameter:
| Model | DK236-15658 |
| Output Power(W) | 40W,50W |
| Input Current(mA) | 750mA, 930mA |
| Input Voltage Range (V) | 36 ~ 42V |
| Luminous Efficiency(lm/w) | 120lm/w 115lm/w |
| Luminous flux(lm) | 6000lm |
| LED Light Source | Lumileds |
| CCT | 3000K, 4000K,5000K,5700K,6500K |
| CRI | 70 |
| IP Class | IP67 |
| lifetime | 50000hours |
|
|
