Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Model Number : | 17265 |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 500000 Piece/Pieces per Month |
| Delivery Time : | 10-20 work days |

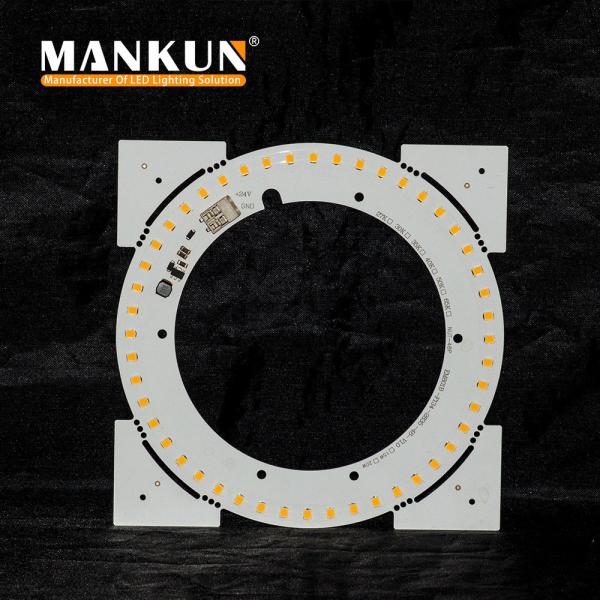

134mm Aluminum Round LED PCB Module DC12V 15w 20w For Track Lights
134mm Round Aluminum PCB DC12V 15w 20w Indoor Led Module For Track Light Led
Description:
17265 Gear type shaped LED Module, Ceiling light engine, With high efficiency SMD2835, the luminous efficiency is up to 130lm / W, Free flicker design, camera shooting without flicker, 1.5mm thick high thermal conductivity aluminum printed circuit board, substrate without additional heat sink.
1. High-efficiency LED module replaces the traditional ceiling
light source.
2. 100% no Flicker, Protect your eyes
3. High CRI Ra > 80 (Optional: Ra > 90)
4. Power 15W / 20W , VDC12V
5. 1.5mm High thermal conductivity MCPCB
6. Free screw Pot magnet
7. Warranty 3 years
8. CE RoHS FCC PSE
Model | Dimension Net Weight | LED Module Input Power | Luminous Flux | Efficacy Typ | Rated Power DC12V | Comment |
17265 | Ø114mm/ID Ø134mm/OD 6Sx8P | VDC12V | 2600Lm | 130Lm/W | 20W | Tcp 46°C |
Surface temperature rise Tc 20°K, Operating temperature:-30℃~40℃,Lifespan: 50,000 hours (Note: Ta 25℃) Tolerance range for optical and electrical data: ±10 %. Test LED color temperature 5800-6500K | ||||||
The above data is for reference only!
P.S.: 100% No Flicker - No Visible Flicker / No Imperceptible
Flicker; Protect your eyes The easiest way to test: use the
cellular phone or camera, up close (30cm within) shooting LED
lights.
The research shows that: The 100/120Hz flicker, may cause
headaches, migraine headaches, eye fatigue and other adverse
effects, serious dimming strobe even cause epilepsy! According to
IEEE PAR1789 2010-2-26; animals can also cause adverse reactions,
such as the impact on birds. According (Maddocks et al., 2001),
(Evans et al., 2006)
|
|
