Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | mankun |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 50000 Piece/Pieces per Week AC Led Module |
| Delivery Time : | 5-10 Work days |

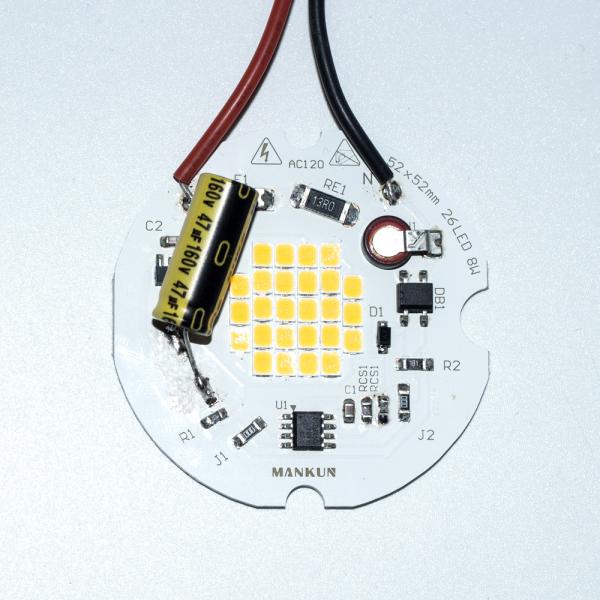

High Frequency DOB AC120V LED Module SMD 2835 For Downlight
High-Frequency AC120V DOB 8W SMD2835 Assemble Led Dob Module For Downlight
Specification
Material | Samsung 2835 LED |
Light Color | Tunable Color from 2700K to 6000K |
CRI | 80/90 |
Light Output | 960lm @5000K Ra80 8W |
HiPot | 1.5KV AC |
Surge Protection | 2.5KV Ring Wave |
Certification | CE,CCC |
Features | APP Dimming and Color Changing, Non Flicker |
Power | 120V 60Hz 8W |
Power Factor | 0.95 |
PCB Diameter | 52*52*1.6mm |
Special Features
LE52-DOB-8W is a complete ready to light ceiling lamp module, broad lens angle enables even light output. CE certificated shorten the product time to market. Support buletooth control with APP to adjust the brightness and color, no need additional hub.
LED Light Engine:
> Improve production efficiency, saving a lot of human
resources.
> Large-scale manufacturing, reduce the cost of the entire lamp.
> High reliability AC direct drive technology, to deal with
complex environments.
> ZHAGA interface compatibility.
> Small and flat, flexible structure design.
OUR SERVICE:
1. Blank PCB manufacturing from 1 to 32 layers;
2. LED PCB PCBA circuit board Custom;
3. LED PCB PCBA Clone;
4. Component sourcing;
5. LED PCB Assembly PCBA ;
6. Custom development program;
7. PCB/ PCBA Test.
LED PCB CIRCUIT BOARD PCBA SETTINGS:
1. PCB material: we adopts
a) high level Aluminum grade , such as 3003 5052 6063 ;
b) high thermal conductive , such 1.5 / 2 / 3 W/mK ;
c) fr4 single and multi-layers.
2. LED brand: Epistar / cree xte xpe xpg / samsung lm561c lm301b lh351b 301h/ lumileds / bridgelux /osramled ssl;
3. LED color : RGB , WHITE , RGBW , 380NM UV , 450NM Blue ,630nm red,660nm deep red, 730nm far red ;
4. LED package: 2835 5730 5050 5630 3030 3535 etc.
|
|
