Guangzhou Mankun Electronic Co., Ltd. is a professional in the designing, and producing LED modules, LED strips, and finish LED products.
4 Years
| Ask Lasest Price | |
| Brand Name : | MANKUN |
| Model Number : | DC12V-18W |
| Certification : | ce, RoHS |
| Price : | Negotiation |
| Payment Terms : | Negotiation |
| Supply Ability : | 500000 Piece/Pieces per Month |
| Delivery Time : | 10-20 work days |
DC12V 18watts SMD2835 Custom PCB LED Module For Ceiling Light
DC12V 18watts SMD2835 LED Custom PCB LED Modules For Ceiling Light Led Module
>>>Product details:
NEW Product:AC LED Ceiling Module with Remote.
- Lighting angle >160°
- Adjustable CCT from 3000K to 6000K and keep the power is the same.
- Night light: 10% Brightness.
- Turn off the light automatically after 30 seconds.
- Used for replacing the light source of old ceiling lights.
- Controlled by IC & Capacitor, no driver. Very easy install.
- Huge market: Most building projects has the old ceiling lights. It would be the best choice.
Technical Parameters:
Model | C4-12W | C4-18W | C4-24W |
Diameter (mm) | Φ180*28mm | Φ218*28mm | Φ253*28mm |
Power | 12W | 18W | 24W |
Cover | lens | ||
Adjust Color | 3000K / 4000K / 6000K | ||
CRI | >80 | ||
Rated Luminous Flux (lm) | 1200±5% | 1800±5% | 2400±5% |
Input Voltage | DC12V | ||
Power Factor | ≥0.92 | ||
THD | ≤20% | ||
Beam Angle | 160° | ||
Average Lifespan Ta25℃ | >30,000hours | ||
Operating Temperature | -20℃~+50℃ | ||
IP Rating | IP20 | ||
Markings | CE, RoHS | ||

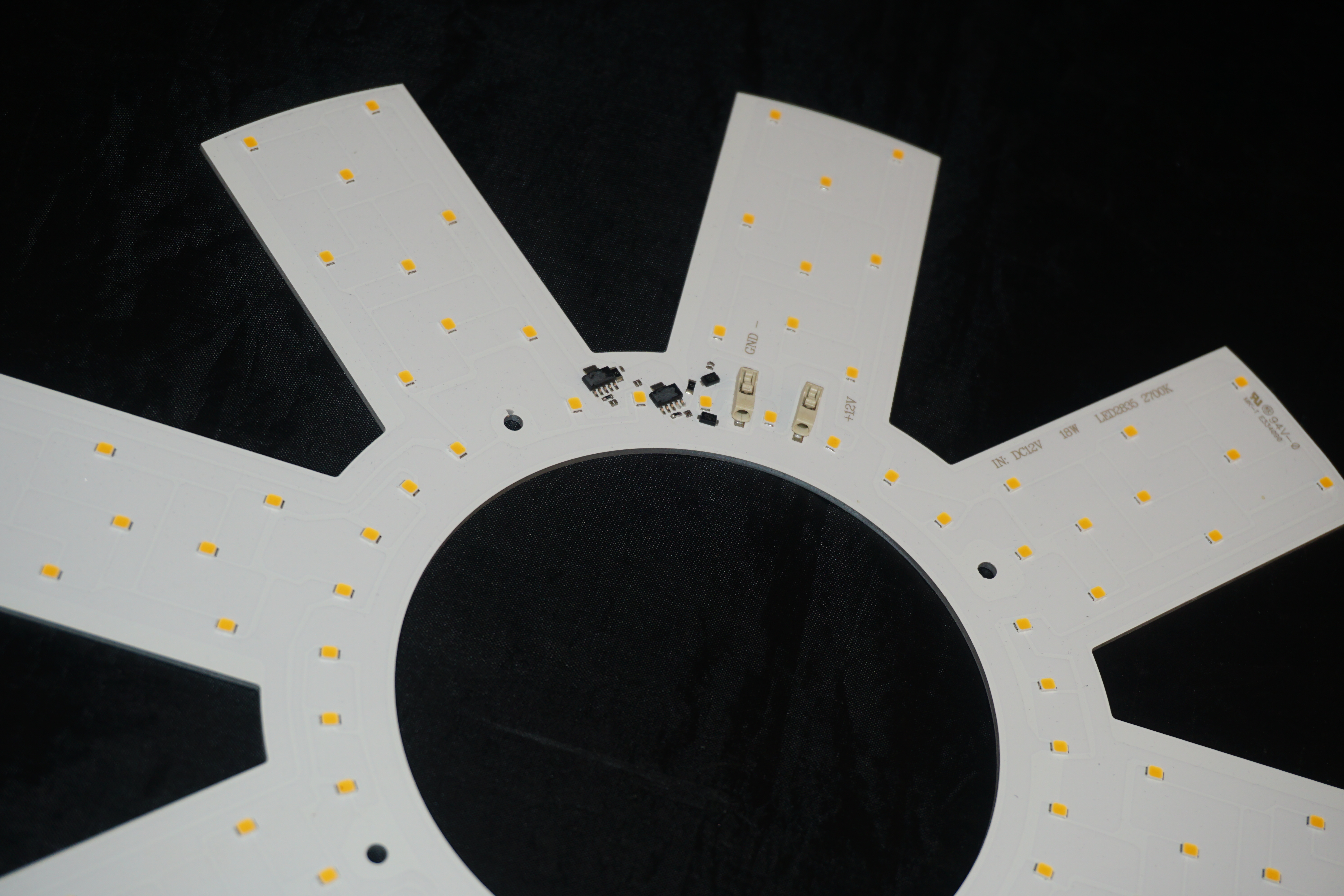

Our led ceiling light led module
Samsug chip of international first-line brand, high efficiency and excellent qualigty.
Chip through the third party certification of the world. there is export white light patent.
Energy star LM80,SGS,UL,IEC62471 photobiosafety certification.
Superconducting thermonuclear substrate, thickness 1.6mm,thermal conductivity>1.5
Application areas:
Kitchen and hall
Toilet,
balcony, corridor, passageway.
Living room.
Bedroom & study room, etc.
|
|
